Battery - Battery capacity - 7 Ah
Battery - Battery life (max) - 2 year(s)
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 24 V

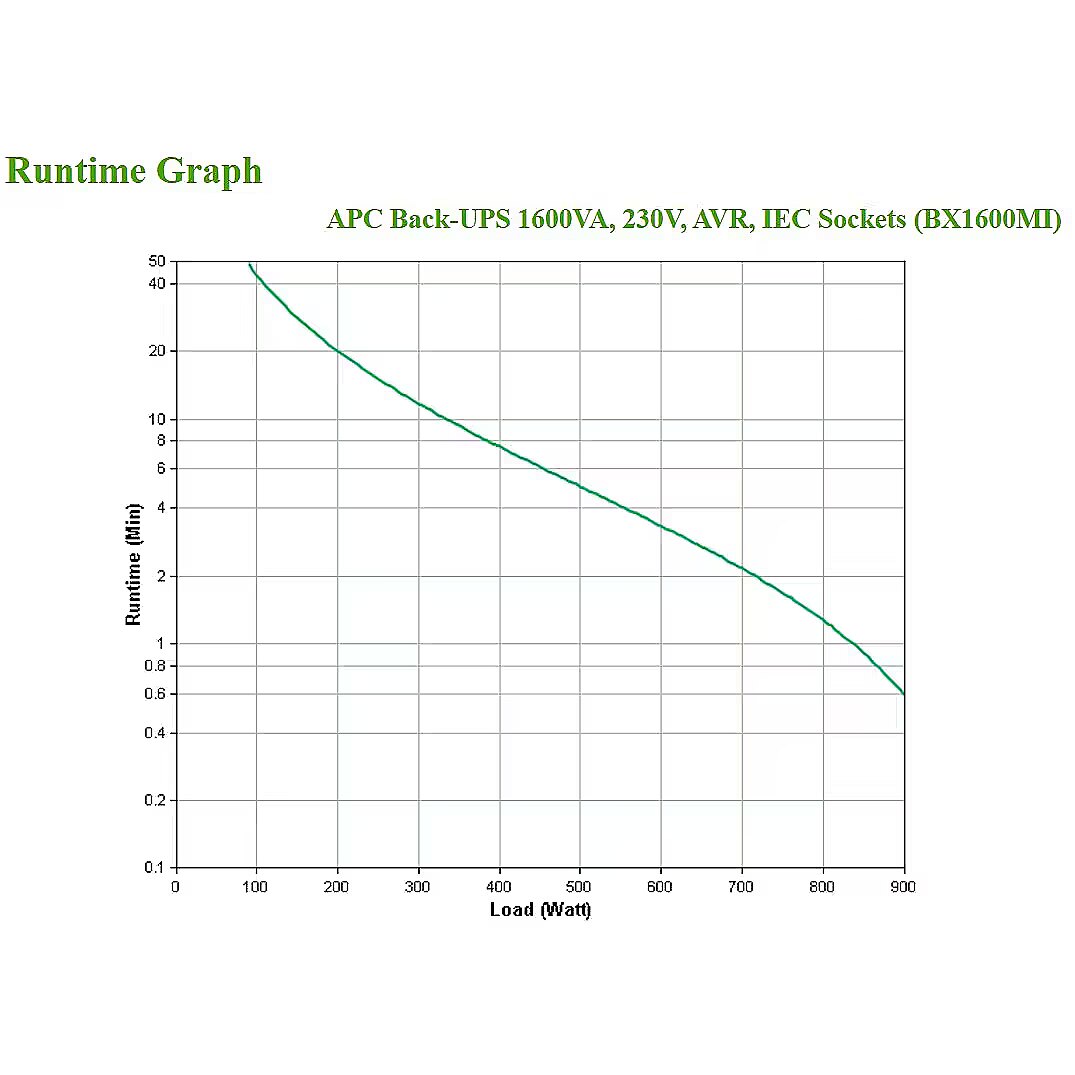

Battery - Typical backup time at full load - 1 min
Battery - Typical backup time at half load - 6.5 min
Brand - APC
BrandPartCode - BX1600MI
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Certificates - Compliance certificates - RoHS
Code - BX1600MI
Design - Built-in fan - Yes
Design - Cable length - 1.2 m
Design - Form factor - Compact
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Black
EAN - 731304410829
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 140 V
Features - Input power factor - 0.56
Features - Noise level - 40 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - 0.5 Hz
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 900 W
Features - Output power capacity - 1.6 kVA
Features - Output voltage regulation - 10%
Features - Response time - 6 ms
Features - Surge energy rating - 273 J
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
GTIN - 731304410829
GTIN - 0731304410829
Link - https://www.se.com/uk/en/product/BX1600MI/apc-backups-1600va-tower-230v-6-iec-c13-outlets-avr/
Logistics data - Harmonized System (HS) code - 85078000

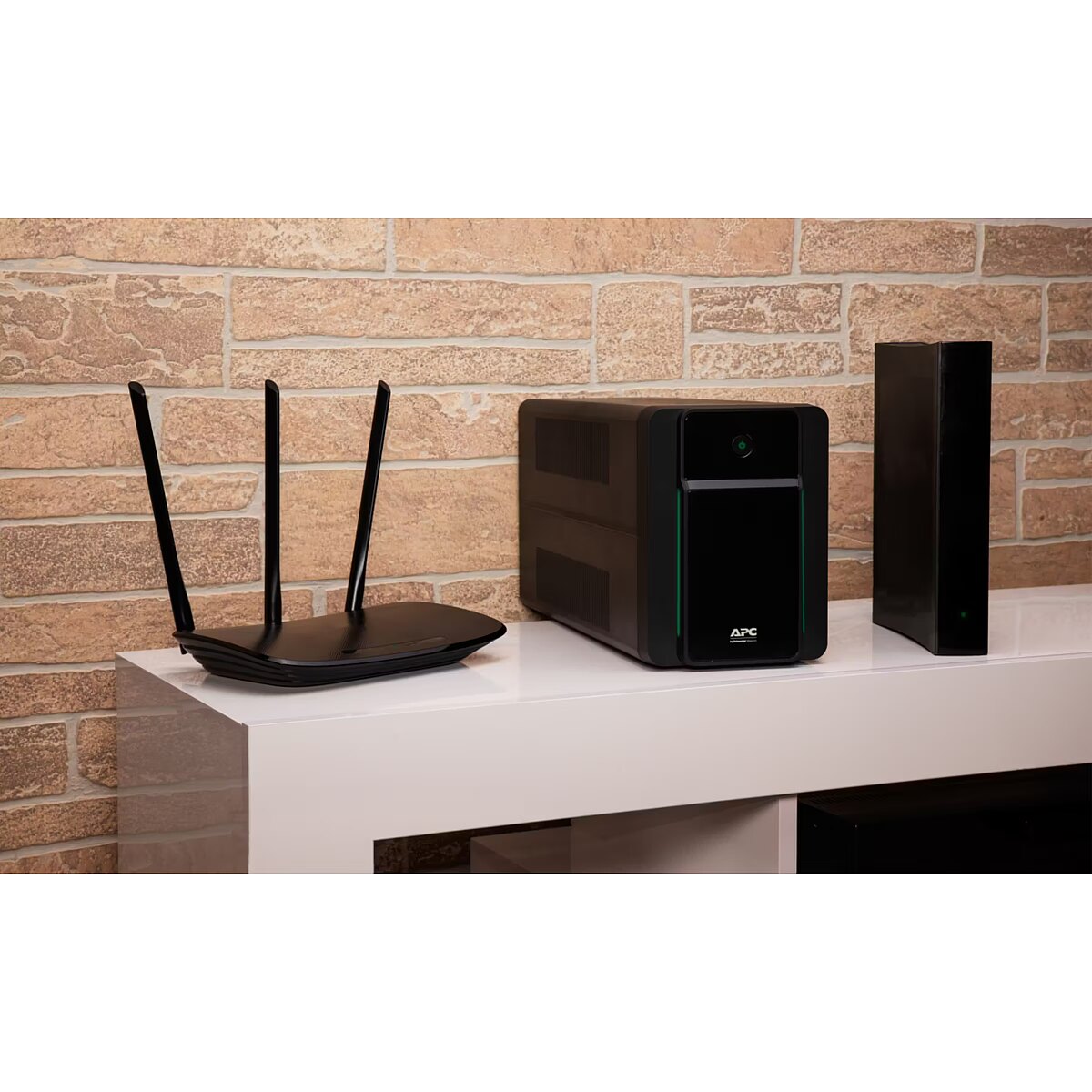

LongDesc - This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 1600VA tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 273 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. This UPS has a 2-year warranty and CE product certification.
LongProductName - Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR
LongSummaryDescription - APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 900 W. AC outlet types: C13 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 24 V. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Compliance certificates: RoHS, Certification: CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Name - Schneider Electric Back-UPS, Tower | BX1600MI | 1600 VA | 900 W
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -15 - 40 °C
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 390.00 mm
Package features > Gross height (mm) - 190.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 88 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 4.30 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - Input power cable
Packaging content - Manual - Yes
Packaging data - Package depth - 140 mm
Packaging data - Package height - 190 mm
Packaging data - Package weight - 11.3 kg
Packaging data - Package width - 390 mm
Performance > Capacity - 1600 VA
Performance > UPS topology - Line-Interactive

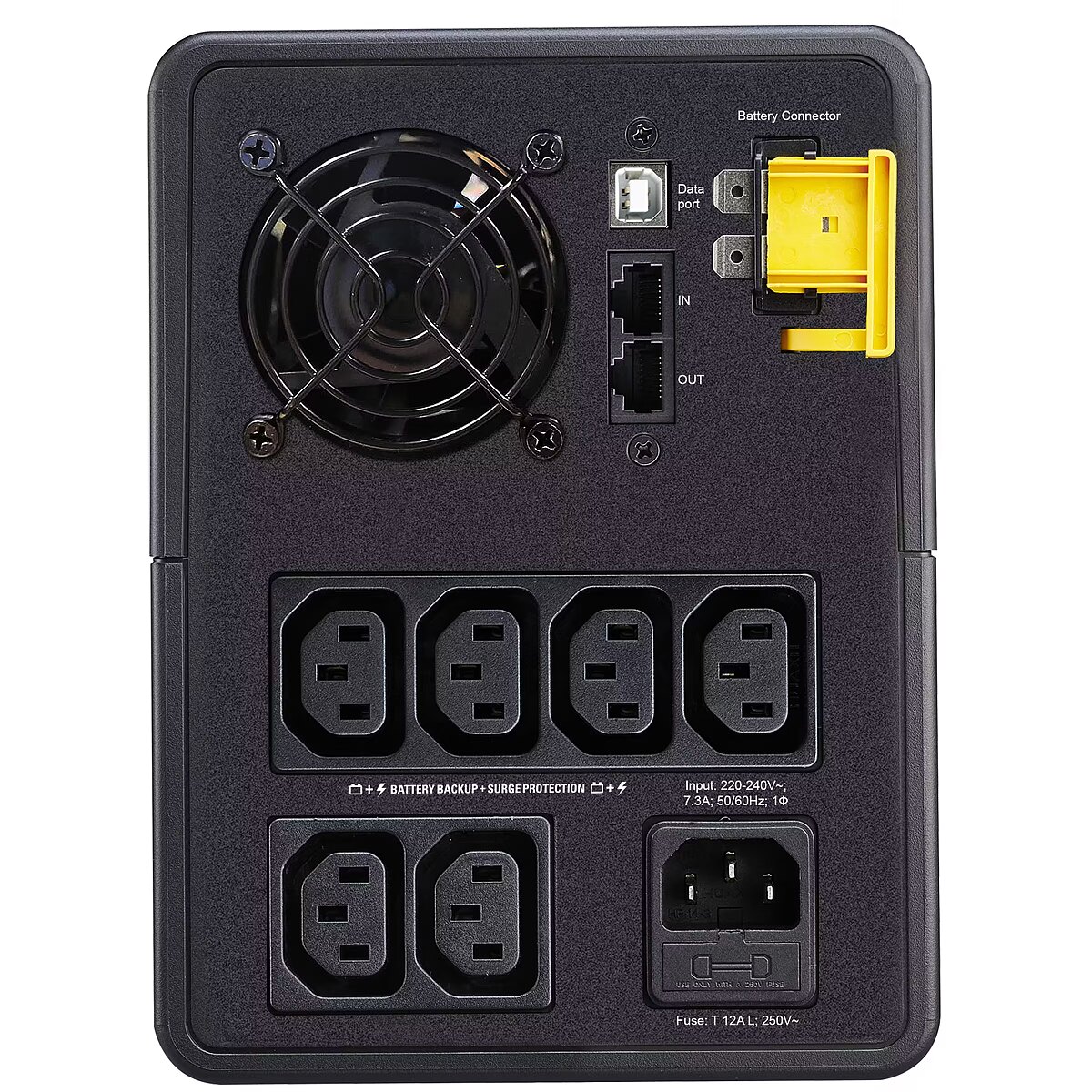

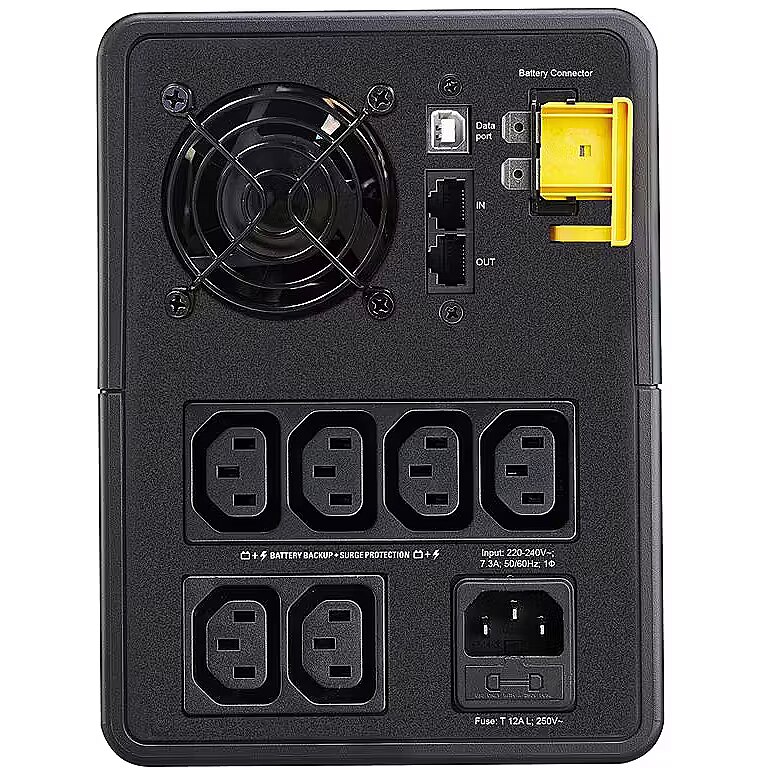

Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C13 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
ProductName - Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR
ShortSummaryDescription - APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR, Line-Interactive, 1.6 kVA, 900 W, Sine, 140 V, 300 V
Technical details > Capacity - 900 W
Technical details > Gross weight - 11.30 kg
Technical details > Net weight - 10.30 kg
Technical details > Producer - Schneider Electric
Technical details > Producer product family - Back-UPS, Tower
Technical details > Producer product name - BX1600MI
Title - APC Back-UPS, 1600VA, Tower, 230V, 6x IEC C13 outlets, AVR
URL - https://www.apc.com/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 years
Weight & dimensions - Depth - 390 mm
Weight & dimensions - Height - 190 mm
Weight & dimensions - Weight - 10.3 kg
Weight & dimensions - Width - 140 mm
