ID: 1215580
Tootekood: SBP3000RMI
Saab tellida 5 üksused Kättesaadavus: 14 päeva pärast tellimuse kinnitamist
Garantii: 2 aastat

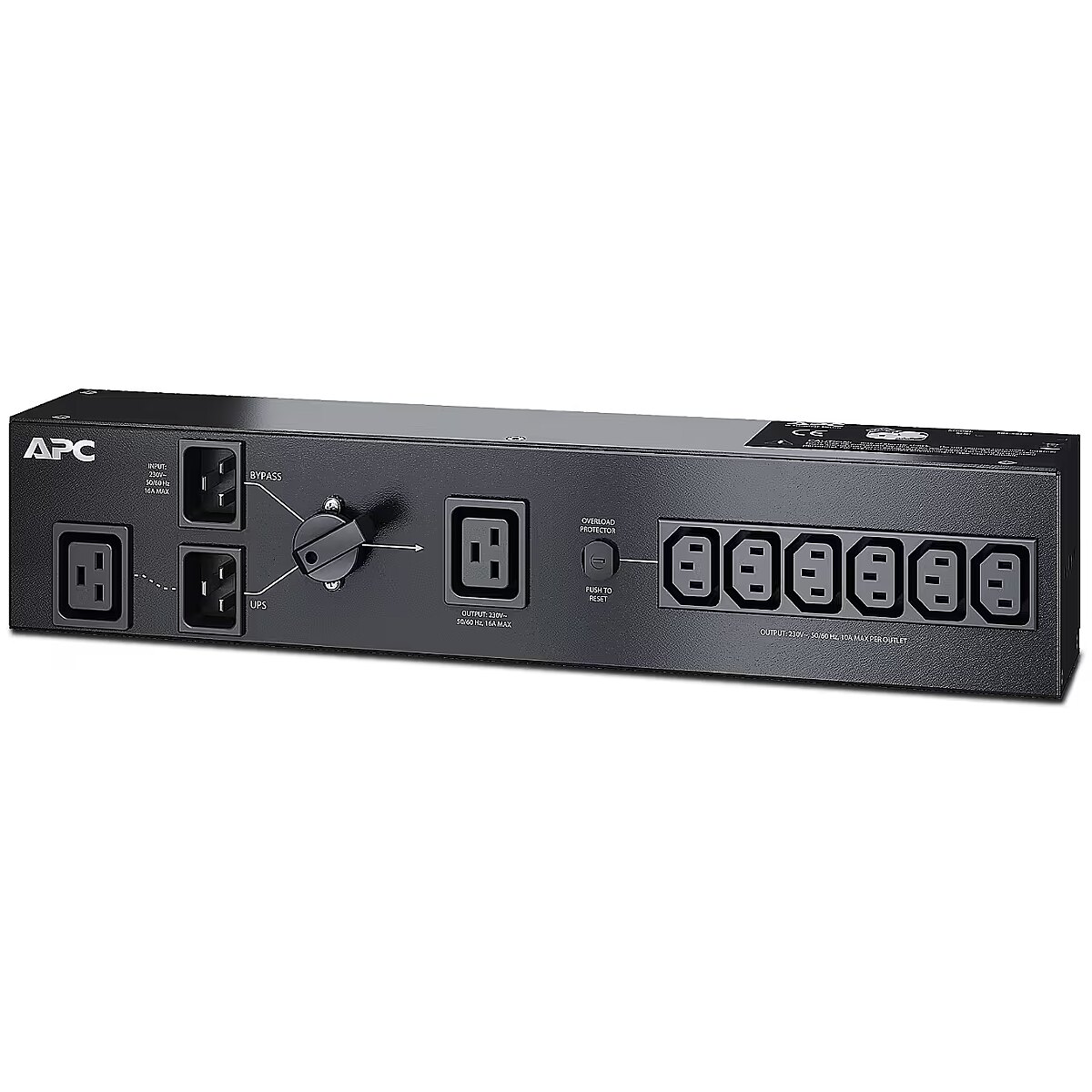

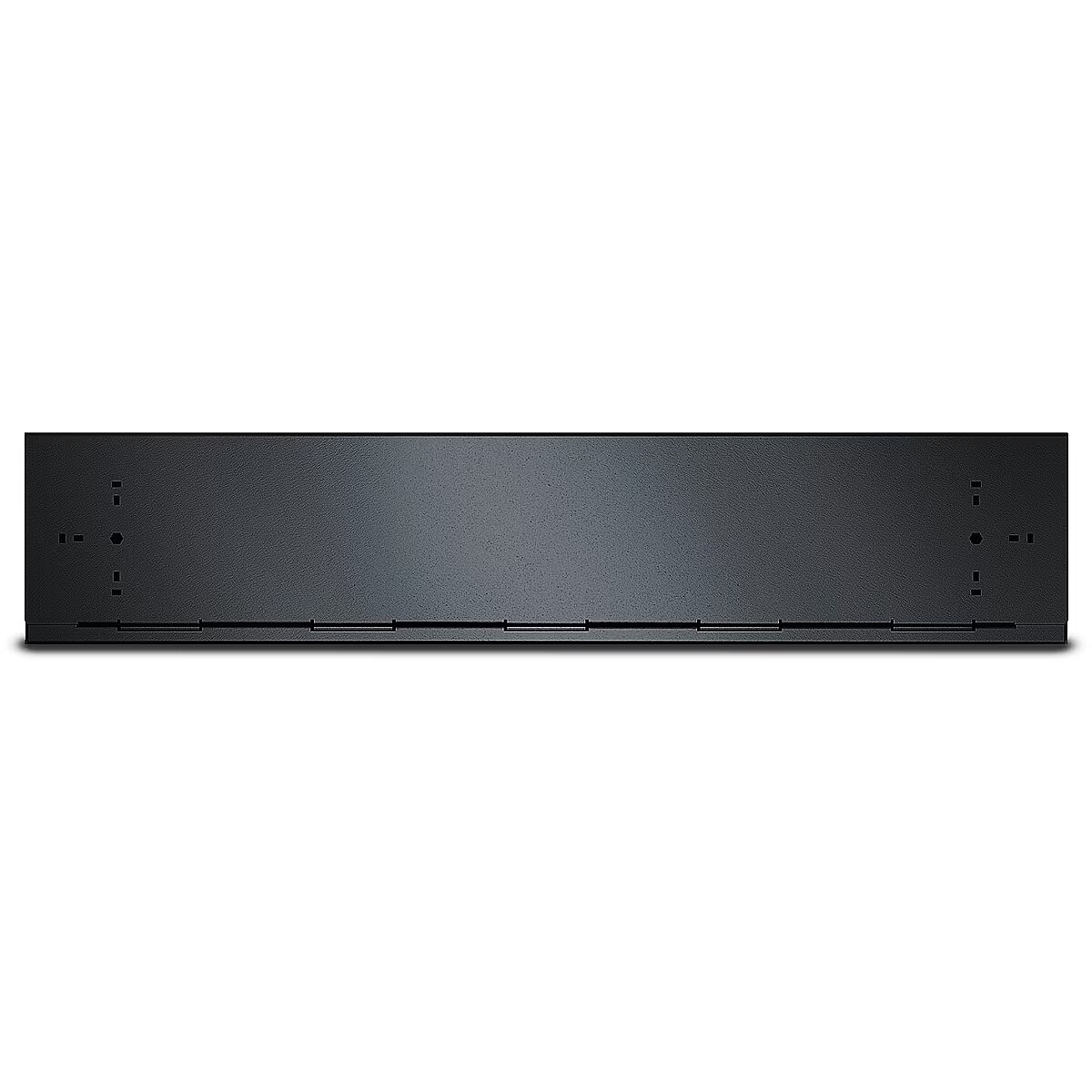

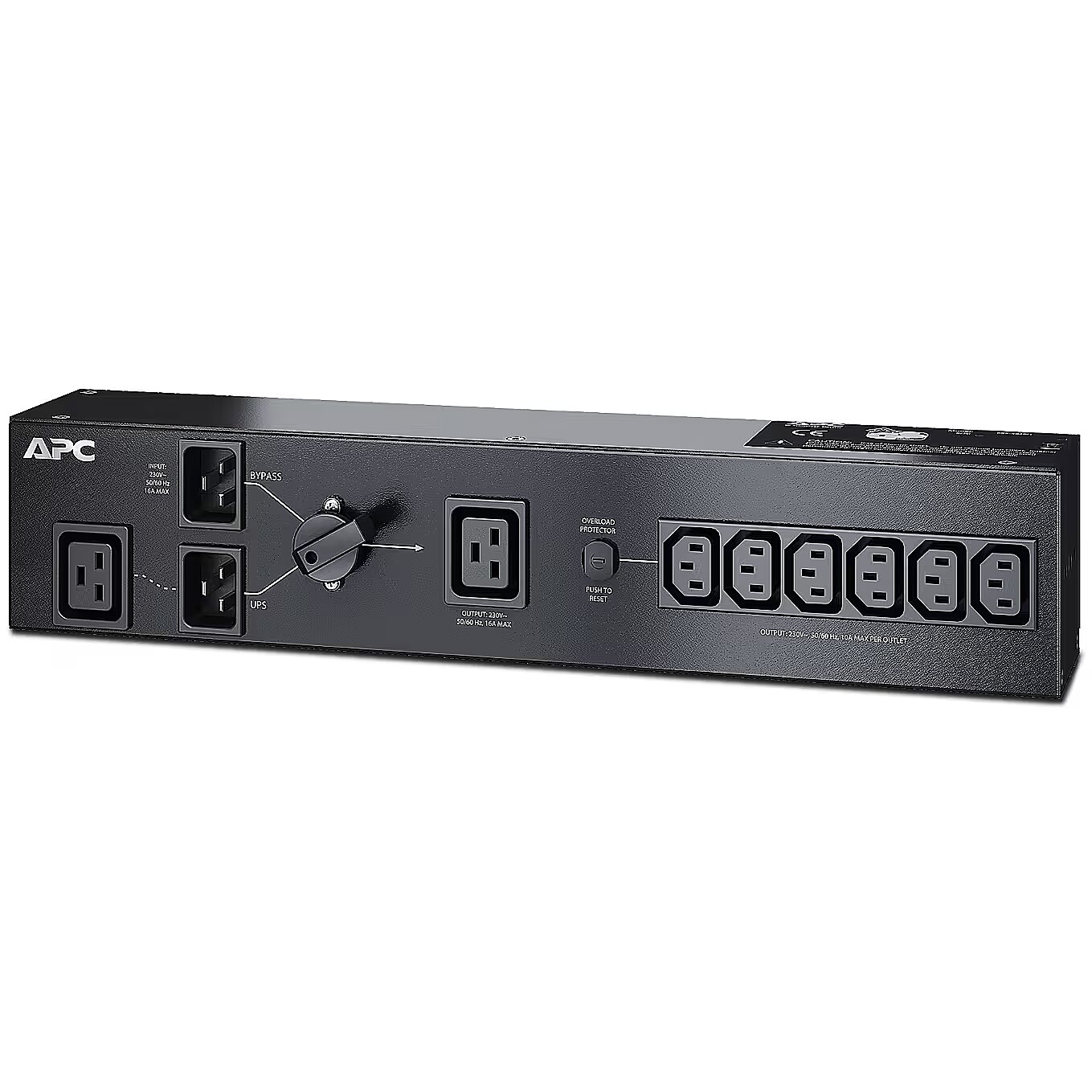

APC Service Bypass PDU SBP3000RMI 2HE 230V
Pilt võib erineda tegelikust tootest, võib esineda tarvikuid ja osi, mis ei ole tegeliku tootega kaasas.
-
Omniva pakiautomaat1-2 tööpäeva jooksul1,99 € -
SmartPosti pakiautomaat1-2 tööpäeva jooksul1,99 € -
Kulleri kohaletoimetamine aadressile1-2 tööpäeva jooksul5,99 €
Peamised tooteparameetrid Kõik parameetrid
- Aku võimsus (VA): 3000 VA
- Võimsus (W): 3000 W
Kõik parameetrid
Mudel
: SBP3000RMI
Näidiku omadused
Näita
: Nav
Põhiteave
Aku tüüp
: Nav norādīts
Aku võimsus (VA)
3000 VA
Patareide suutlikkus (mahtuvus) on UPS pikaajalise töötamise näitaja, lahtiühendatuna vooluallikast. See parameeter vastab UPS seadmele, mil on täielikult täislaaditud akumulaator. Juhul, kui soovite välja selgitada, kui suurt mahtuvust vajab teie arvutitehnika, külastage www.apc.ru, kust võite leida võimsuse määramise konfiguraatori.
Laadimisaeg (tundi)
: Ei ole määratud
Võimsus (W)
: 3000 W
Sadamad ja seadmed
Pesade arv (kokku)
: 7
Pistikupesa tüüp
: IEC320
Pistikupesade arv (aku varukoopia)
: 0
RJ-45
: 0
USB
: 0
Täpsem spetsifikatsioon
Brand - APC
BrandPartCode - SBP3000RMI
Cable length, m - 2.5
Category - Maintenance Bypass Panels (MBPs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - VDE, REACH
Certificates - Compliance certificates - RoHS
Certification - VDE
Depth, mm - 76
Description - APC SERVICE BYPASS PANEL 230V 16A BBM IEC C20 INPUT, (6) IEC C13 (1) C19 OUTPUT
EAN - 0731304266747
GTIN - 0731304266747
GTIN - 731304266747
Height - 141.000000
Height, mm - 89
Input connection - IEC-320 C20
Input current, A - 16
Input frequency, Hz - 50/60
Input voltage, V - 220-240
Length - 464.000000
LongDesc - APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19,IEC JumpersQuick Transfer RateTransfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.Wrap Around System Bypass(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
LongProductName - 230V, 16A, 3000VA, 6 x IEC 320 C13 & 1 x IEC 320 C19 Out, 1 x IEC Jumper, 1 x IEC-320 C20 In, OLP, 2.5m Cord, 2.09kg, Black
LongSummaryDescription - APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19. Compliance certificates: RoHS, Certification: VDE, REACH. Width: 432 mm, Depth: 76 mm, Height: 89 mm
Manufacturer - APC
ManufacturerPartNumber - SBP3000RMI
MPN - SBP3000RMI
Name - APC Service Bypass PDU SBP3000RMI 2HE 230V
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Output interface - 6 x IEC 320 C13, 1 x IEC 320 C19, 1 x IEC Jumpers
Output power capacity (VA) - 3000
PeriodofWarranty - 2 Y
ProductName - Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
ShortSummaryDescription - APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19, RoHS, VDE, REACH, 0 - 40 °C, 0 - 95%, 432 mm, 76 mm
Storage temperature range (T-T), °C - -15 - 45
Title - APC Service Bypass PDU 230V 16AMP W/ (6) IEC C13 And (1) C19
UPS devices and accessories - Yes
URL - https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=SBP3000RMI&tab=features
WarrantyInfo -
Weight - 3.44
Weight - 3.510000
Weight & dimensions - Depth - 76 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 2.09 kg
Weight & dimensions - Width - 432 mm
Weight, kg - 2.09
Width - 293.000000
Width, mm - 432
