Fortron | CHAMP 2K RACK | 2000 VA | 1800 W

Battery - Battery capacity - 9 Ah
Battery - Battery recharge time (90%) - 4 h
Battery - Battery voltage - 12 V
Battery - Number of battery cells - 4
Brand - FSP
BrandPartCode - PPF18A1401
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Compliance certificates - CE
Code - CHAMP 2K RACK
Design - Built-in fan - Yes
Design - Control type - Buttons
Design - Cooling type - Active

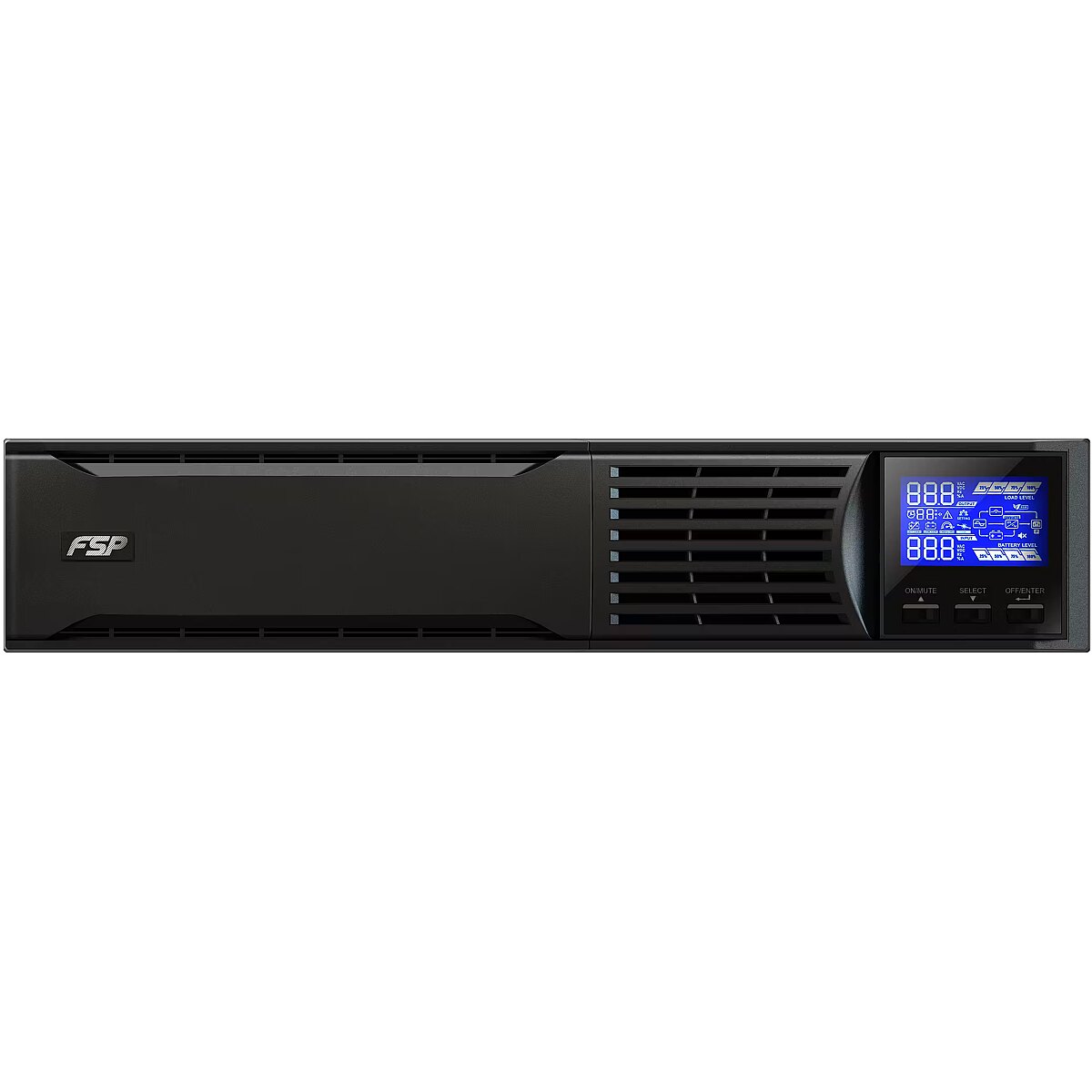

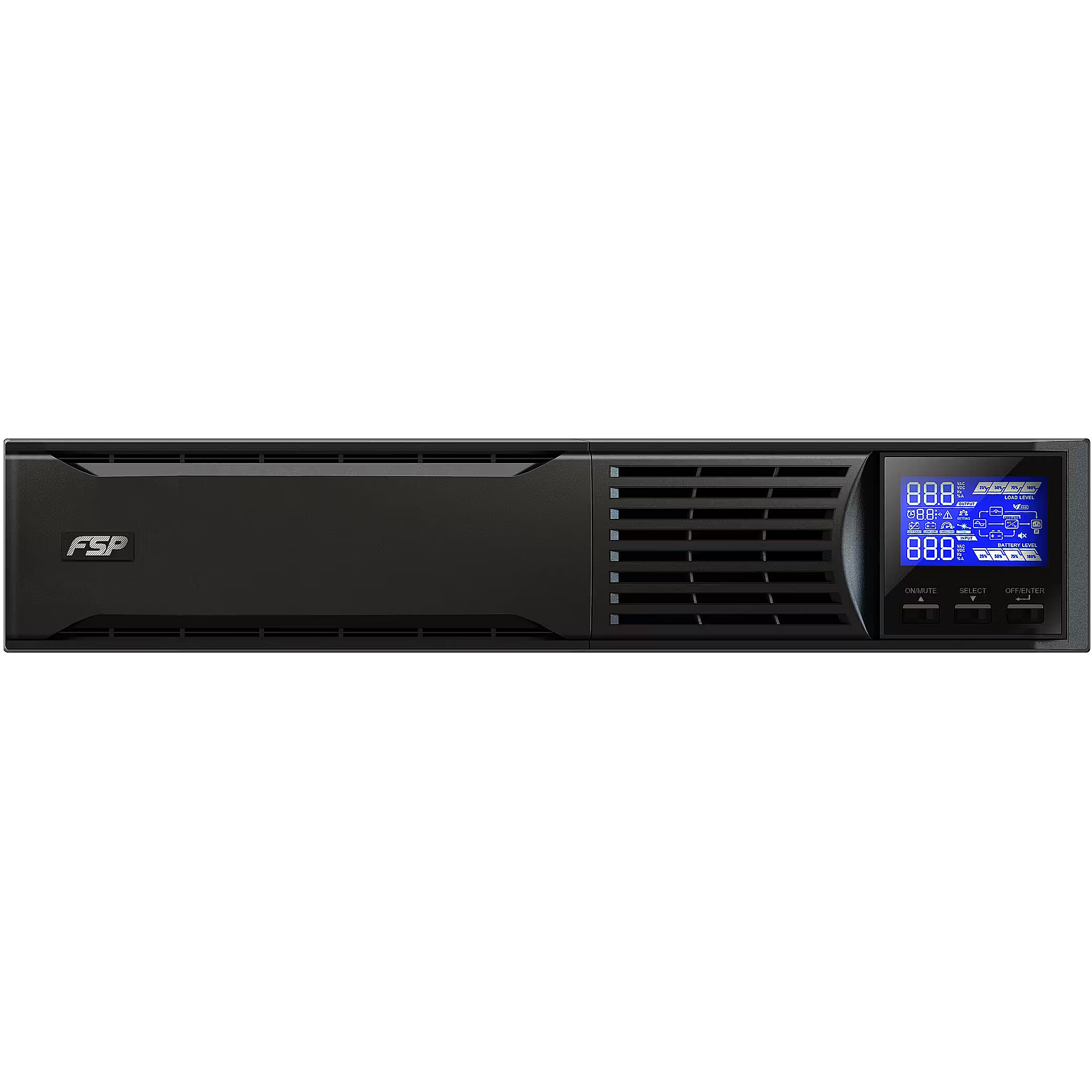

Design - Display type - LCD
Design - Form factor - Rackmount
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
EAN - 4713224520617
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 120 V
Features - Noise level - 50 dB
Features - Output frequency - 47/63 Hz
Features - Output frequency regulation - 0 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 110 V
Features - Output power - 1800 W
Features - Output power capacity - 2 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 0 ms
Features - Total Harmonic Distortion (THD) (linear load) - 3%
Features - Total Harmonic Distortion (THD) (non-linear load) - 6%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Gross weight - 20 kg
GTIN - 4713224520617
Link - https://www.fsp-europe.com/champ-rack-series-1k2k3k-2/
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - FSP Champ Rack Series is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
LongProductName - 2000 VA, 1800 W, 110 - 240 V, 3:1, 438 x 410 x 88 mm, 19 kg
LongSummaryDescription - FSP Champ Rack 2K. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: Type F, AC outlets quantity: 3 AC outlet(s), USB port type: USB Type-B. Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time (90%): 4 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE
Name - FSP | CHAMP 2K RACK | 2000 VA | 1800 W
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Number of phases - 1
Other features - Packaging content - UPS, Power cable, USB cable, Software on CD, User manual
Other features > Dimensions (WxDxH) - 88 x 438 x 410 mm
Other features > Special features - Pure Sinewave
Package features > Gross depth (mm) - 565 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross width (mm) - 505 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 34 pc(s)
Package features > Tare weight (kg) - 0.351 kg
Package features > Volume (m3) - 0.0513585 m³
Package features > WEE classification - CL109:5:2017-04-01
Packaging content - Batteries included - Yes
Packaging content - Cables included - Input power cable, USB cable
Packaging content - Manual - Yes
Packaging data - Software CD - Yes
Performance > Capacity - 2000 VA
Performance > UPS topology - On line

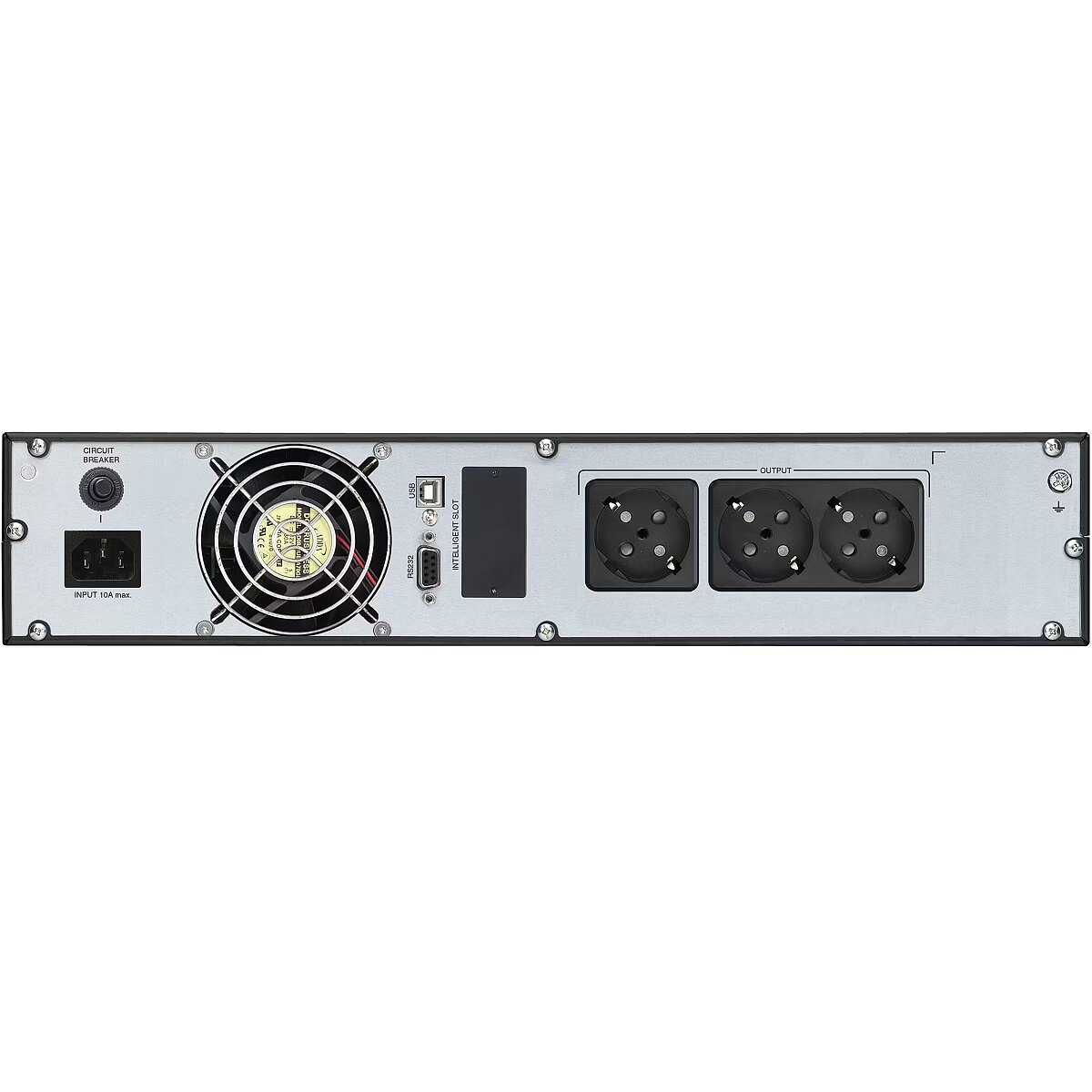

Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - Type F
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
Power > AC input frequency - 40 - 70 Hz
Power > Output power - 1800 W
Producer product name - CHAMP 2K RACK
ProductName - Champ Rack 2K
ShortSummaryDescription - FSP Champ Rack 2K, Double-conversion (Online), 2 kVA, 1800 W, Pure sine, 120 V, 300 V
Sustainability - Sustainability compliance - Yes
Technical details > Capacity - 1800 W
Technical details > Net weight - 19.649 kg
Technical details > Producer - FSP
Title - FSP Champ Rack 2K uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 3 AC outlet(s)
URL - https://energy.fsp-europe.com/product/champ-rack-2k/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 410 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Weight - 19 kg
Weight & dimensions - Width - 438 mm
Weight & dimensions > Weight - 19000 g
