Accessories included - 1 x Solar inverter 1 x RS232 communication cable 1 x User manual 1 x CD 1 x Fuse 1 x Device installation protocol 1 x Warranty card
Active power - 3.5 kW
Apparent power - 3500 VA
Category - Root/Accessories | Exploitation/Power supply/Alternatywne źródła energii/Inwertery solarne
Color - White
Color - Yellow
Description - Be energy independent
The performance of a photovoltaic system depends on the selection of the right inverter, or solar inverter. The inverter performs a key function in this system, converting the DC current generated by the photovoltaic panels into AC current used by household appliances. The off-grid hybrid inverter connects the photovoltaic system, energy storage and the grid.
It uses excess solar energy to power consumers and charge the battery. When energy production is greater than current demand, the excess current can be transferred to charge LiFePO4, AGM, GEL or energy storage batteries, allowing energy to be stored for later use, such as at night or on cloudy days. The hybrid inverter can automatically switch to off-grid mode, supplying energy from the batteries.
Why should you choose a hybrid inverter?
- Inverter with pure sine wave inverter type,
- automatic restart during AC power restoration,
- readable multifunctional touchscreen LCD display,
- 100A MPPT charge controller,
- option of mains or generator power supply,
- ability to change AC/Solar charger priority settings via LCD display,
- intelligent charger design for optimum battery performance,
- configurable input voltage range for home appliances and PCs via settings on the LCD display panel,
- configurable battery charging current depending on appliances and PCs via settings on the LCD display,
- cold start function,
- reserved communication port for BMS (RS485, RS232).
Maximize the possibilities with MPPT technology
The battery charging inverter uses a state-of-the-art 100A MPPT charge controller to maximize the power drawn from the photovoltaic panels, using advanced maximum power point tracking technology. Having this feature significantly affects the efficiency of the photovoltaic installation-they can maintain high power even in low sunlight conditions. In addition, the controller controls the battery operation and charging process and protects the battery from damage.
Battery Management System (BMS)
The built-in BMS battery management system is crucial for the long-term life of the battery in an off-grid system. The BMS monitors and manages battery parameters, ensuring optimal charging, discharging and protecting against overcharging or over-discharge. This allows users to enjoy a reliable source of energy for many years.
Multifunctional touch-screen LCD display
The product is equipped with a multifunctional, easy-to-use LCD display with control panel. Facilitates monitoring of the entire photovoltaic installation. Allows you to configure the input voltage range for home appliances and personal computers or change the priority settings of the AC/Solar charger. In addition, the display records data and informs about failures, reacting accordingly if any of the parameters exceed the norm. If a fault occurs, the inverter shuts down.
Designation - CE+WEEE
dimension depth - 450 mm
dimension height - 180 mm
Dimensions - (D/L x W x H): 358 x 295 x 105mm
dimension weight - 6900 g
dimension width - 370 mm
ean - 5901878538709
Eans - 5901878538709
Environment requirements - Working temperature: -10C ~ +50C Storage temperature: -15C do +60C
Filters / protection - Circuit
Filters / protection - Overheating
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - external

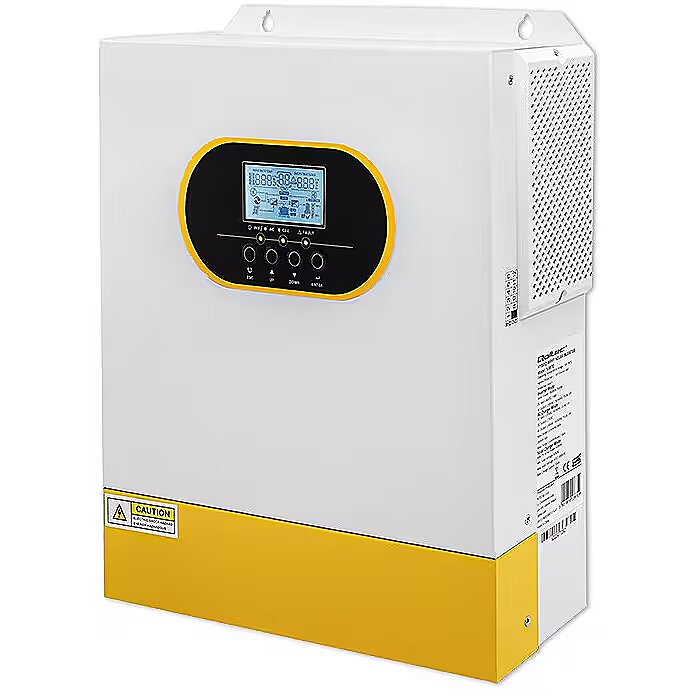

Name - Qoltec Hybrydowy inwerter solarny Off-Grid 3.5kVA| 3.5kW | 100A | MPPT | LCD | BMS | Sinus
name - Solar Inverter Off Grid 3.5kVA, 3.5kW, 100A
Number of phases input - 1 (120V)
Other features - Support LiFePO4 AGM, GEL, Deep cycle batteries
producer - Qoltec
Producer - Qoltec
ProducerCode - 53870
ShortDescription -
Software -
Special functions -
vendpn - 53870
Weight - 6.2 kg
