Accessories included -
Audio - Built-in speaker(s) - No
Brand - MSI
BrandPartCode - CUBI 5 12M-406BEU
Category - PC/Workstation Barebones
Category - Root/Laptops | Tablets/Computer | Servers/Mini-PC computers
Certificates - Certification - FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Color - Black
Communications - Bluetooth
Communications - LAN 10/100/1000
Communications - WiFi 802.11 ax
CPU - other information - Intel Core i5-1235U
CPU Boost frequency - 4.4 GHz
CPU frequency - 1.3 GHz
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Producent - MSI
Dane techniczne: Rodzaj - dla firm i profesjonalistów
Dane techniczne: Rodzaj - domowe multimedia
Description -
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - 0.66L sized PC
Design - Panel mounting interface - 100 x 100 mm
Design - Product colour - Black
Design - Product type - Mini PC barebone
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 220 mm
Dimensions - 124 x 124 x 53.7 mm
dimension weight - 1359 g
dimension width - 210 mm
Dysk twardy: Interfejs dysku 1 - M.2
Dysk twardy: Interfejs dysku 2 - Serial ATA/600
Dysk twardy: Typ dysku 1 - SSD
ean - 4711377301503
Eans - 4711377301503
Elementy wyposażenia: Napęd optyczny - brak
Expansion slots - PCI Express slots version - 3.0
Graphics - Discrete graphics card model - Not available
Graphics - Graphics card family - Intel
Graphics - On-board graphics card - Yes
Graphics card -
GTIN - 4711377301503
guarantee - 36
guarantee_type - external
Housing - Mini PC
Karta graficzna: Karta graficzna - Intel Iris Xe Graphics
Karta graficzna: Złącza karty graficznej - 1 x Display Port
Karta graficzna: Złącza karty graficznej - 1 x HDMI
LongDesc - Small But PowerfulBring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.SUPPORT UP TO 8K RESOLUTIONCubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.BOLT TO THE NEXT POWERThunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlesslySEE MORE, DO MOREWith HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.MSI Cloud CenterFAST, SECURE & WIRELESS BACKUPFast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.MSI CENTERThe MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.STABLE & POWERFULEquips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.WI-FI 6E TECHNOLOGYWi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.USB 3.2 GEN 2 Type AWith data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.DUAL LAN - SECURITYMore than Dual LAN, the best way to secure your data and prevent the HackerFW TPM SUPPORTFW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.EASY MAINTENANCEUsers can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.VESA MOUNT SUPPORTVESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.VARIOUS IO PORTSWith a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.Successful & Stylish B2B projectsOver the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
LongProductName - Intel Core i5-1235U (12MB Cache), LAN, WLAN, Bluetooth, No OS
LongSummaryDescription - MSI Cubi 5 12M-406BEU. Chassis type: 0.66L sized PC, Product type: Mini PC barebone. Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: HDD & SSD. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Power supply: 65 W
Max memory size - 64 GB
Memory - Maximum internal memory - 64 GB
Memory - Memory slots type - SO-DIMM
Memory - Number of memory slots - 2
Memory card reader - No
Memory type - SO-DIMM
Model - Cubi 5 12M-406BEU
name - Mini PC Cubi 5 12M-406BEU noOS ICi5-1235U/WiFi/AX/BT/Black
Name - MSI Cubi 5 12M-406BEU - i5-1235U
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX211
Number of available memory slots - 2
Obudowa: Kolor - czarny
Obudowa: Waga całkowita - 0.55 kg
Obudowa: Wymiary - 124 x 124 x 53.7 mm

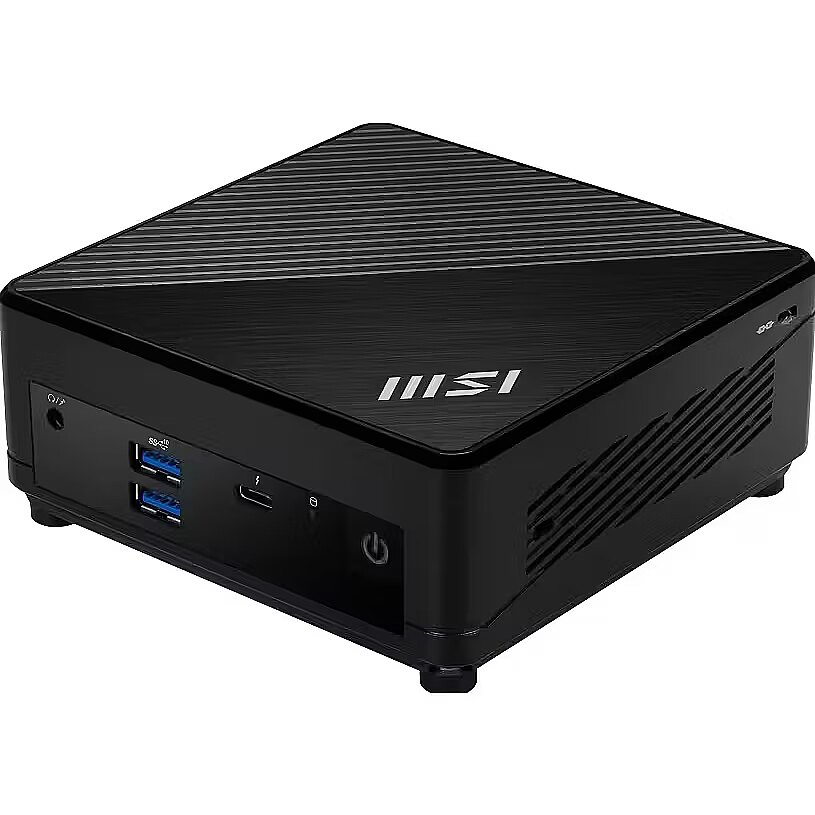

Obudowa: Złącza na przednim panelu - 1 x Thunderbolt 4
Obudowa: Złącza na przednim panelu - 2 x USB 3.2 Gen 2
Obudowa: Złącza na przednim panelu - audio
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Oprogramowanie: System operacyjny - brak systemu w komplecie
Other features -
Other features - Warranty period - 3 year(s)
Other I/O ports - 1 x Audio (Combo)
Other I/O ports - 2 x RJ-45
Packaging content - Display included - No
Packaging content - Keyboard included - No
Packaging content - Mouse included - No
Pamięć: Ilość wolnych banków pamięci - 2
Pamięć: Rodzaj pamięci RAM - SO-DIMM DDR4
Performance - Optical drive type - No
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0b
Ports & interfaces - Thunderbolt 4 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Power - Power supply - 65 W
Power - Power supply type - External AC adapter
Pozostałe cechy: Dodatkowe informacje - mocowanie VESA 100 x 100 | 1x M.2 | 1 x 2.5" HDD / SSD
Pozostałe cechy: Karta sieciowa - 10/100/1000/2500 | 10/100/1000
Pozostałe cechy: Standard łączności bezprzewodowej - Bluetooth
Pozostałe cechy: Standard łączności bezprzewodowej - Wi-Fi 6E (802.11a/b/g/n/ac/ax)
Pozostałe cechy: Szyfrowanie - szyfrowanie TPM 2.0
Procesor: Liczba rdzeni procesora - 10
Procesor: Model procesora - i5-1235U (3.0GHz, 4.4GHz Turbo, 12MB Cache, 15W)
Procesor: Seria procesora - Intel Core i5-12XXX
Procesor: Typ procesora - Intel Core i5
Processor - Built-in processor - Yes
Processor - Efficient-core Max Turbo Frequency - 3.3 GHz
Processor - Efficient cores - 8
Processor - Performance-core Max Turbo Frequency - 4.4 GHz
Processor - Performance cores - 2
Processor - Processor boost frequency - 4.4 GHz
Processor - Processor cache - 12 MB
Processor - Processor cache type - Smart Cache
Processor - Processor codename - Comet Lake
Processor - Processor cores - 10
Processor - Processor family - Intel® Core™ i5
Processor - Processor generation - 12th gen Intel® Core™ i5
Processor - Processor lithography - 14 nm
Processor - Processor manufacturer - Intel
Processor - Processor model - i5-1235U
Processor - Processor threads - 12
Processor - Thermal Design Power (TDP) - 15 W
Processor family - Intel Core i5
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV
EScience Park Eindhoven 5706
5692 ER Son Eindhoven producer - MSI
Producer - MSI
ProducerCode - Cubi 5 12M-406BEU
ProductName - Cubi 5 12M-406BEU

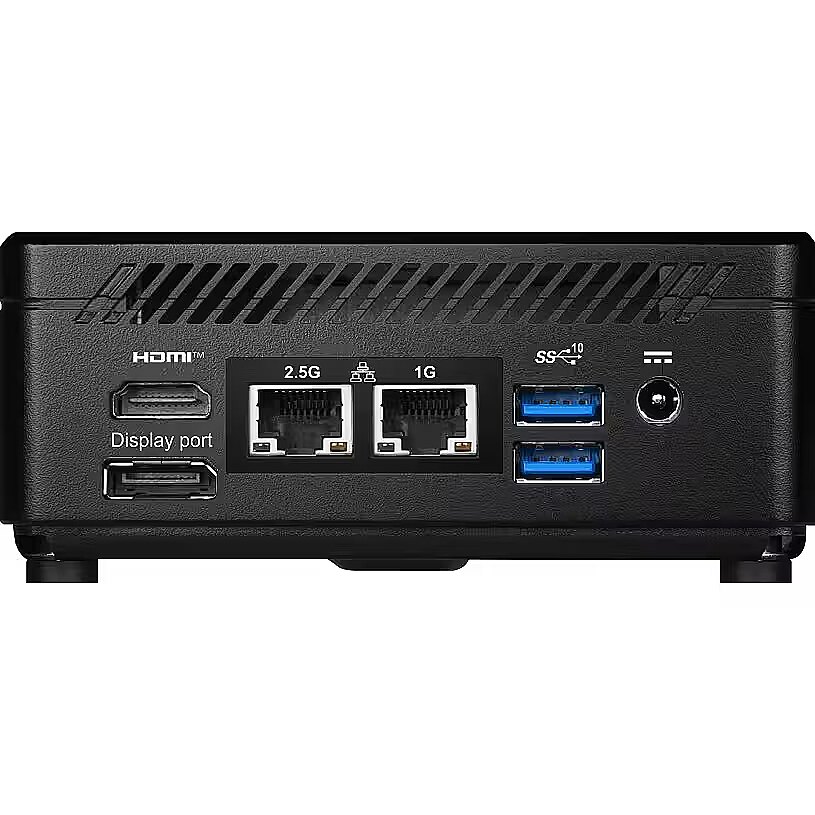

Płyta główna: Złącza na tylnym panelu - 2 x RJ45
Płyta główna: Złącza na tylnym panelu - 2 x USB 3.2 Gen 2
ShortDescription - i5-1235U
ShortSummaryDescription - MSI Cubi 5 12M-406BEU, 0.66L sized PC, Mini PC barebone, Ethernet LAN, Wi-Fi 6E (802.11ax), 65 W
Software - Operating system installed - No
Sound card -
Storage - Number of storage drives supported - 2
Storage - Storage drive sizes supported - 2.5,M.2
Storage - Supported storage drive types - HDD & SSD
Supported operating systems - None
Title - MSI Cubi 5 12M-406BEU 0.66L sized PC Black i5-1235U
URL - https://www.msi.com/Business-Productivity-PC/Cubi-5-12M/Overview
USB ports - 4 x USB 3.2 Type-A Gen 2
vendpn - Cubi 5 12M-406BEU
Video ports - 1 x DisplayPort
Video ports - 1 x HDMI
Video ports - 1 x Thunderbolt 4
Warranty -
WarrantyInfo - 36 months
Weight - 0.59 kg
Weight & dimensions - Depth - 124 mm
Weight & dimensions - Height - 53.7 mm
Weight & dimensions - Package depth - 506 mm
Weight & dimensions - Package height - 469 mm
Weight & dimensions - Package weight - 1.33 kg
Weight & dimensions - Package width - 221 mm
Weight & dimensions - Weight - 590 g
Weight & dimensions - Width - 124 mm
Zasilanie: Moc zasilacza - 65 W
