Accessories included - Relay unit Micro USB cable (0.5m) Quick Installation Guide Quick Start Guide HDMI extension cable (0.15m)
ARTIKEL1 - WIREL. TRANSMITTER FOR DS-55319
ARTIKEL2 -
Breite - 0
Category 1 - Audio & Video
Category 2 - Konferenzsysteme
Category_1 - Network and Servers
Category_2 - Network - KVM Switches
Color - Gray
Color - Silver
Connectors #1 - HDMI Type A Male

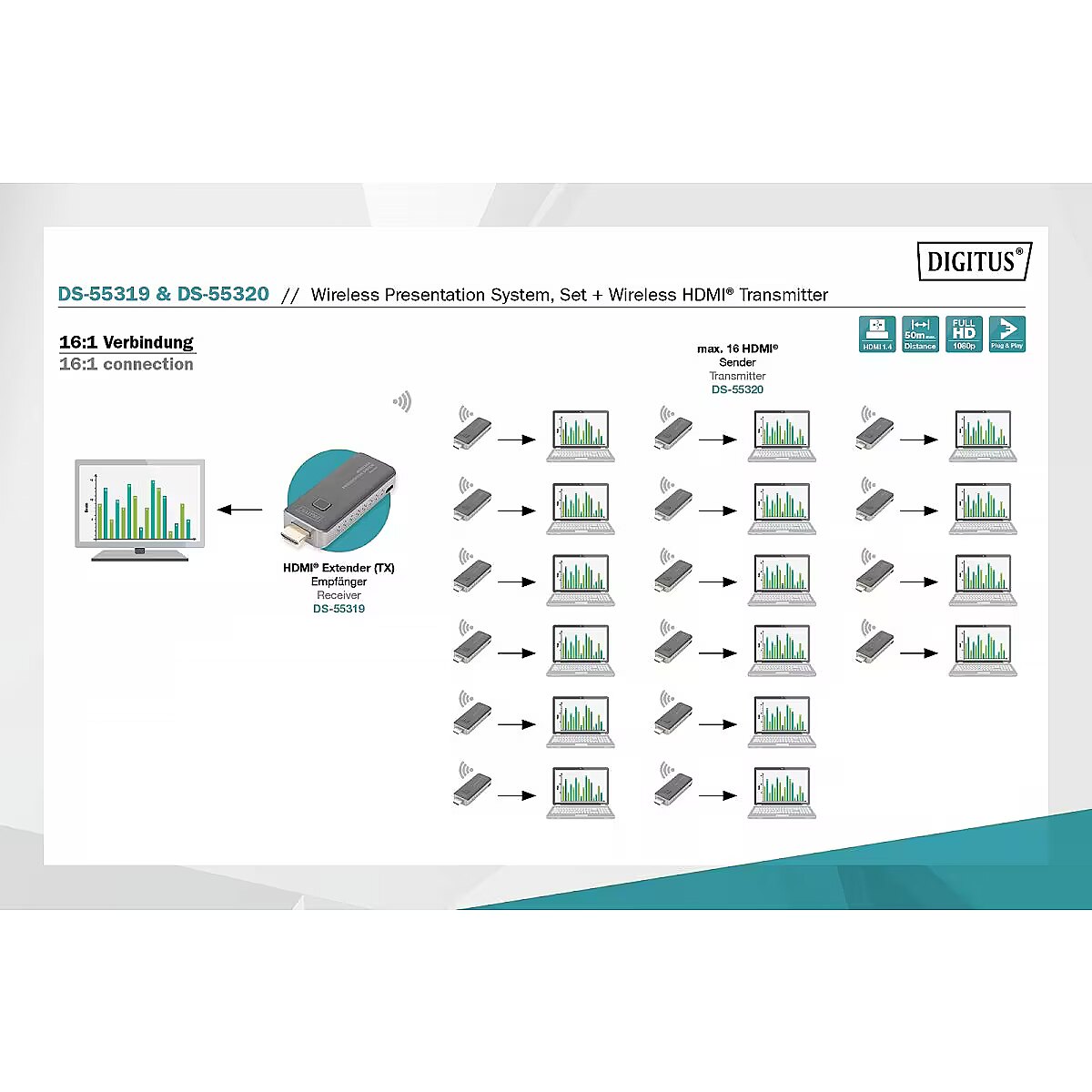

Description - Additional relay unit for the DS-55319 presentation system Using the wireless presentation system, you can transmit HDMI video and audio signals in Full HD resolution at a distance of up to 50 m while maintaining a direct line of sight. Commissioning and operation are very simple. Plug & Play - just plug it in and start working. The set can be expanded to a maximum of 16 receivers (DS-55320). Quickly and easily switch to the transmitter of your choice with the touch of a button and share your content. You can also share content directly from your mobile device (smartphone/tablet) via your mobile device's operating system without the need for an additional app. The transmitter can be powered through the computer's HDMI port (>500 mA required). For safe and stable operation, we recommend always powering the transmitter and receiver via the micro USB cable. Thanks to the compact design of the transmitter and receiver, setup is easy, quick and adaptable - ideal for conference rooms. Wireless HDMI signal transmission up to 50 m (with no obstacles in a straight line) Supports resolutions up to 1920x1080p Sharing and presenting: The HDMI transmitter extends the wireless presentation system and can be used with any devices equipped with an HDMI output (compatible with Windows, macOS) No need to install any software: To share the image from the computer via the HDMI transmitter module (transmitter), you only need to pair the transmitter once with the receiver module Plug, Press and Play: After connecting the HDMI adapter to the HDMI port, simply press the button on the transmitter module to start signal transmission (active transmission will be interrupted) Multi-user support Up to 16 participants/source devices can be connected to the receiver at the same time and alternately start screen sharing User interface: If no video signal is transmitted, the information page displays guidance on how to properly establish a connection (refer to the manual of the mobile device used) Video resolution: The transmitter module supports HDMI 1.4 / HDCP 1.3 and resolutions up to Full HD 1920 x 1080p at 60 Hz (stereo sound: 16 bit / 48 KHz) Power: Transmitter can be powered by computer's HDMI port (>500 mA required). For safe and stable operation, we recommend always powering the transmitter and receiver via the micro USB cable. Range: In the absence of interfering obstacles, the signal transmission range is up to 50 m, while in the case of restrictions interfering with the transmission, the range cannot be clearly defined and depends on local conditions Application examples: Business applications (meeting and conference room, meeting room, office, trade show booth, boardroom) / Education applications (schools, colleges, universities, classroom, seminar room)
Designation - CE+WEEE
dimension depth - 50 mm
dimension height - 123 mm
Dimensions - L. 83 x W. 32 x H. 13 mm
dimension weight - 160 g
dimension width - 80 mm
ean - 4016032478799
EAN - 4016032478799
EANCode - 4016032478799
EAN_code - 4016032478799
GRUPPE1 - Network
GRUPPE2 - Kvm Switch Cable/Acc
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55320
Laenge - 0
Manufacturer - Digitus
Manufacturer_code - DS-55320
MPN - DS-55320
Name - Digitus Digitus Wireless HDMI Transmitter Click & Present
Name - Digitus Wireless HDMI Transmitter für Click & Present Mini (DS-55319)
name - Wireless HDMI Transmitte DS-55320
Other features - Signal transmission channel: IEEE 802.11ac, 5 GHz, 2T2R HDMI version: 1.4 HDCP version: 1.3 AES 128 bit encryption WPA2 protocol Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise) Windows, macOS support Number of connections per unit: 1 x HDMI plug, 1 x micro USB socket Power: HDMI jack (0.5A required) or via Micro-USB (DC 5V / 0.5A) Button to connect to the status LED Audio: Stereo, 16 bit / 48 KHz ABS housing Power consumption: approx. 2.5 W Operating temperature: 0-40°C In the case of limited visibility, the transmission range cannot be clearly defined and depends on local conditions. Walls, windows, etc. shorten the signal range or cause signal loss
producer - Digitus
Standard - HDMI Standard
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System Requirements -
Type - Extension cord
Usage - Audio
Usage - Computer
Usage - Video
vendpn - DS-55320
Weight - 0,16
Weight - 0.16
Weight - 27 g
