Brand - TERRA
BrandPartCode - 1100321
Category - Servers
Cooling - Cooling type - Active
Cooling - SERVER - Active
Design - Certification - CE, production according to ISO9001 in Germany

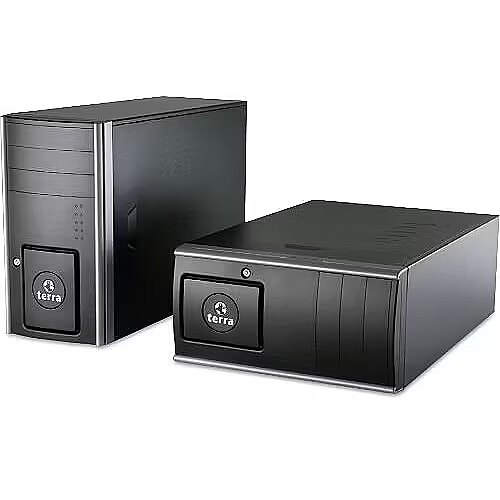

Design - Chassis type - Pedestal / Tower - optional modifiable

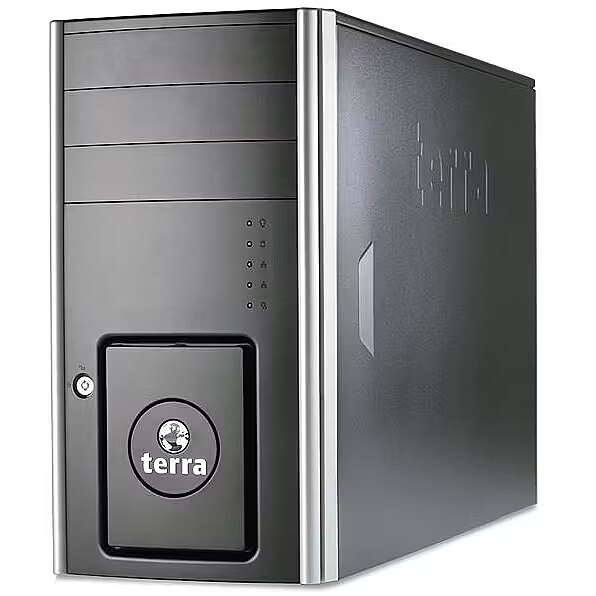

Design - Chassis type - Tower (5U)

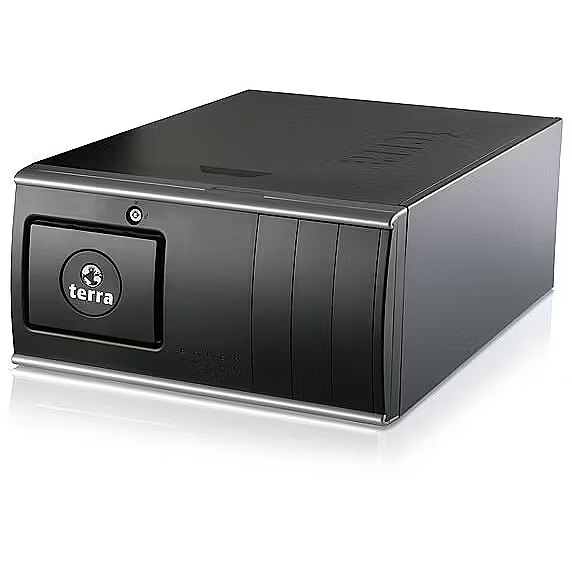

Design - Rack mounting - tower / 5U
Design - SERVER - CE, production according to ISO9001 in Germany
Design - SERVER - Pedestal / Tower - optional modifiable
Design - SERVER - tower / 5U
EAN - 4039407079971
General - Operating system - No operating system
General - Processor model - Intel Xeon Silver 4309Y / 2.8 GHz
General - SERVER - Intel Xeon Silver 4309Y / 2.8 GHz
General - SERVER - No operating system
Graphics - Graphics adapter ports - VGA
Graphics - Graphics card - Aspeed AST2600
Graphics - SERVER - Aspeed AST2600
Graphics - SERVER - VGA
Gross Weight Kg - 30,5
GTIN - 4039407079971
Keyboard - Keyboard form factor - Optional
Keyboard - SERVER - Optional
LongDesc - TERRA SERVER 6000 G4 series These extremely powerful server systems are based on the 3rd generation Intel® Xeon® scalable platform and include Silver and Gold processor levels. A balanced architecture that provides built-in AI acceleration and advanced security features that let you securely place your workloads from the edge of the network to the cloud, depending on where they can best run. Scalable 3rd generation Intel® Xeon® processors are optimized for many workload types and performance levels and run in a constant, open Intel® architecture. TERRA SERVER systems of the 6000 series offer you a high degree of performance, flexibility and availability. This dual-processor-system leaves nothing to be desired with its selectable chassis, tower- or rack-chassis and the selection of the drive interface (NVMe, SAS or SATA).
LongProductName - 12 MB, 2.8 GHz, Intel C621A, 8-Core, 800 W, 425x220x660 mm, 30.5 kg
LongSummaryDescription - TERRA 1100321. Processor family: Intel® Xeon®, Processor frequency: 2.8 GHz, Processor model: 4309Y. Internal memory type: DDR4-SDRAM. Total storage capacity: 3.8 TB. Ethernet LAN. Power supply: 800 W, Redundant power supply (RPS) support. Chassis type: Tower (5U)
Manufacturer Code - 1100321
Manufacturer Name - WORTMANN AG
Memory - ECC - Yes
Memory - Internal memory type - DDR4-SDRAM
Memory - Internal memory type - REG DDR4 DIMM with ECC
Memory - Maximum internal memory - 4.1 TB
Memory - Maximum internal memory - 4096 GB
Memory - Memory channels - 8-Channel-Memory-Architecture
Memory - Memory ranking - 8
Memory - Memory slots - 16x DDR4 PC3200/2933, REG ECC
Memory - Memory slots - 16x DIMM
Memory - SERVER - 8-Channel-Memory-Architecture
Memory - SERVER - 16x DDR4 PC3200/2933, REG ECC
Memory - SERVER - 4096 GB
Memory - SERVER - REG DDR4 DIMM with ECC
Mouse - Mouse included - Optional
Mouse - SERVER - Optional
Network - Cabling technology - 2x 1 GbE (RJ45) 2x 10 GbE (RJ45)
Network - Ethernet LAN - Integrated
Network - Ethernet LAN - Yes
Network - LAN controller - 2x Intel I210 2x Intel X550
Network - LAN controller - Intel I210, Intel® X550
Network - SERVER - 2x 1 GbE (RJ45) ¦ 2x 10 GbE (RJ45)
Network - SERVER - 2x Intel I210 ¦ 2x Intel X550
Network - SERVER - Integrated
Operational conditions - Operating relative humidity (H-H) - 10 - 75%
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Operating temperature (T-T) - 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
Operational conditions - Recommended humidity operating range - 10-75% (non-condensing)
Operational conditions - SERVER - 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
Operational conditions - SERVER - 10-75% (non-condensing)
Other features - Drive bays - 3x 5.25" 1x 3.5"
Other features - Hard disk controller - Broadcom MegaRAID 9560-8i
Other features - Interface - 1x VGA 1x USB 3.2 Gen2 6x USB 3.2 Gen1 (2x front) 2x LAN (RJ-45) option: 1x serial
Other features - Motherboard manufacturer - Supermicro X12DAI-N6
Other features - Number of drive bays - Slot 1: PCIe 4.0 x16 (CPU1) Slot 2: PCIe 4.0 x16 (CPU2) Slot 3: PCIe 4.0 x16 (CPU1) Slot 4: PCIe 4.0 x16 (CPU2) Slot 5: PCIe 4.0 x16 (CPU1) Slot 6: PCIe 4.0 x8 (CPU2)
Other features - Remote administration - Yes
Other features - SERVER - 1x VGA ¦ 1x USB 3.2 Gen2 ¦ 6x USB 3.2 Gen1 (2x front) ¦ 2x LAN (RJ-45) ¦ option: 1x serial
Other features - SERVER - 3x 5.25" ¦ 1x 3.5"
Other features - SERVER - Broadcom MegaRAID 9560-8i
Other features - SERVER - Slot 1: PCIe 4.0 x16 (CPU1) ¦ Slot 2: PCIe 4.0 x16 (CPU2) ¦ Slot 3: PCIe 4.0 x16 (CPU1) ¦ Slot 4: PCIe 4.0 x16 (CPU2) ¦ Slot 5: PCIe 4.0 x16 (CPU1) ¦ Slot 6: PCIe 4.0 x8 (CPU2)
Other features - SERVER - Supermicro X12DAI-N6
Other features - SERVER - Yes
Performance - Channels quantity - 8
Performance - Compatible operating systems - Windows Server 2022 Windows Server 2019
Performance - Series - SERVER 6000
Performance - SERVER - 8
Performance - SERVER - SERVER 6000
Performance - SERVER - Windows Server 2019¦
Performance - SERVER - Windows Server 2022¦
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - Maximum input power - 800 W
Power - Number of power supply units - 2 pc(s)
Power - Power source - Power supply - redundant
Power - Power supply - 800 W
Power - Redundant power supply (RPS) support - Yes
Power - SERVER - 2 pc(s)
Power - SERVER - 800 W
Power - SERVER - Power supply - redundant
Power - SERVER - Yes
Print Text - 1x Xeon Silver 4309Y (12 MB cache, 8x 2.8 GHz) | TERRA SR107 TOWER, optional 19"-mountable (5U) | 800W PSU redundant | 2x 32 GB DDR4 REG ECC RAM, 2x 1.9 TB SATA SSD (RAID 1), | optional additional 4 HD Backplane | Broadcom MegaRAID 9560-8i with 4 GB cache | (RAID 0/1/10/5/50/6/60) | (!) w/o DVD burner | 2x 10 GbE LAN, 2x 1 GbE LAN, Software Remote Mgmt, TPM | Graphic onboard (VGA) | (!) w/o keyboard and mouse | (!) w/o operating system
Processor - L3 cache - 12 MB
Processor - Maximum number of SMP processors - 2
Processor - Motherboard chipset - Intel C621A
Processor - Number of processors - 1
Processor - Number of processors installed - 1
Processor - Processor boost frequency - 3.6 GHz
Processor - Processor cores - 8
Processor - Processor cores - 8-Core
Processor - Processor family - 2-CPU / Xeon SP
Processor - Processor family - Intel® Xeon®
Processor - Processor frequency - 2.8 GHz
Processor - Processor manufacturer - Intel
Processor - Processor model - 4309Y
Processor - Processor socket - P4 / LGA4189
Processor - SERVER - 1
Processor - SERVER - 2
Processor - SERVER - 2-CPU / Xeon SP
Processor - SERVER - 2.8 GHz
Processor - SERVER - 3.6 GHz
Processor - SERVER - 8-Core
Processor - SERVER - 12 MB
Processor - SERVER - Intel C621A
Processor - SERVER - P4 / LGA4189
ProductName - 1100321
Short description - TERRA SERVER 6530 G4 S-4309Y/64/2x1.9TB/C
ShortSummaryDescription - TERRA 1100321, 2.8 GHz, 4309Y, DDR4-SDRAM, 3.8 TB, 800 W, Tower (5U)
Software - Compatible operating systems - Windows Server 2022
Windows Server 2019
Software - Operating system installed - No
Storage - HDD capacity - 2x 1.9 TB SSD
Storage - Internal drive bays - 4x 3.5"/2.5" optional 8x 3.5"/2.5"
Storage - Maximum storage capacity - 1.9 TB
Storage - Number of SSDs installed - 2
Storage - Number of storage drives installed - 2 pc(s)
Storage - Optical drive type - Optional
Storage - RAID levels - 1
Storage - RAID levels - RAID 1
Storage - RAID support - Yes
Storage - SERVER - 2 pc(s)
Storage - SERVER - 2x 1.9 TB SSD
Storage - SERVER - 4x 3.5"/2.5" ¦ optional 8x 3.5"/2.5"
Storage - SERVER - 3800 GB
Storage - SERVER - Optional
Storage - SERVER - RAID 1
Storage - SERVER - SATA 6Gb/s
Storage - SERVER - SSD SATA
Storage - SSD capacity - 3.8 TB
Storage - SSD interface - SATA
Storage - SSD interface - SATA 6Gb/s
Storage - Storage media type - SSD SATA
Storage - Total storage capacity - 3.8 TB
Storage - Total storage capacity - 3800 GB
Technical details - Localization - International
Technical details - Optional on-site service - 24h On-Site-Service + DMR 24h On-Site-Service + DMR + Premium
Technical details - SERVER - 24h On-Site-Service + DMR + Premium¦
Technical details - SERVER - 24h On-Site-Service + DMR¦
Technical details - SERVER - International
Title - TERRA 1100321 server 3.8 TB Tower (5U) Intel® Xeon® 4309Y 2.8 GHz DDR4-SDRAM 800 W
URL - https://www.wortmann.de/en-gb/product/aa_terra_server/1100321/server.aspx
WarrantyInfo -
Weight & dimensions - Depth - 66 cm
Weight & dimensions - Depth - 660 mm
Weight & dimensions - Height - 42.5 cm
Weight & dimensions - Height - 425 mm
Weight & dimensions - SERVER - 22 cm
Weight & dimensions - SERVER - 30.5 kg
Weight & dimensions - SERVER - 42.5 cm
Weight & dimensions - SERVER - 66 cm
Weight & dimensions - Weight - 30.5 kg
Weight & dimensions - Width - 22 cm
Weight & dimensions - Width - 220 mm
