Category 1 - Festplatten
Category 2 - Festplatten Zubehör
Category Code - DDC

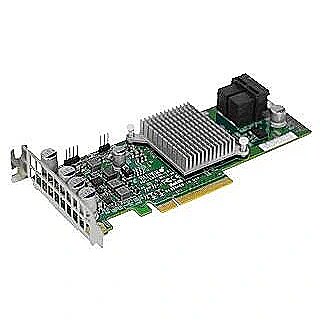

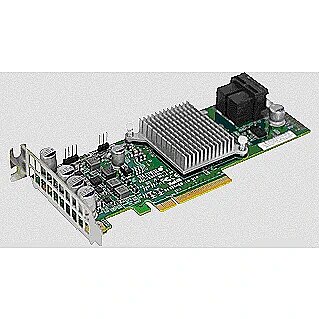

Description - Supermicro 12Gb/s Eight-Port SAS Internal RAID Adapter The Supermicro MegaRAID AOC-S3008L-L8i feature 8 internal SAS connectors for high-performance storage connectivity. Use a Broadcom 3008 I/O processor with Fusion-MPT (Message Passing Technology) for optimum RAID performance and a PCI Express host interface for increased bandwidth, this RAID adapters delivers an intelligent and robust RAID solution. The AOC-S3008-L8i supports 63 devices. • Broadcom 3008 SAS controller • 8-port (internal), 12Gb/s per port • Supports 63 devices • Supports MegaRAID Storage Manager Software • Automatically negotiates PCI-E (1.x, 2.x AND 3.X) link widths • Power management support • Supports 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates • Port independent auto-negotiation • Supports SSP, SMP, STP and SATA protocols • Zoning capability w/ SAS2 expanders • OS Support : Windows 2012, 2k8,Vista, RedHat Enterprise and SUSE Linux • Processor at 1.2 GHZ • Supports RAID 0, 1, 1E and 10
EAN - 0672042143610
Frequency speed - 1200 MHz
Full Description Line - Model name AOC-S3008L-L8i|Port Type SAS 12Gbps|Number of ports 8|Frequency speed 1200 MHz
Manufacturer - Super Micro
Model name - AOC-S3008L-L8i
MPN - AOC-S3008L-L8I
Name - RAID SATA/SAS PCIe 8x SuperMicro S3008L-L8I (Chip: LSI 3008)
Number of ports - 8
Port Type - SAS 12Gbps
Shipping Box Depth Shipping/Package Box Dimensions - 26 cm
Shipping Box Height Shipping/Package Box Dimensions - 20 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
Unit Box Height - 0.2
Unit Box Length - 0.26
Unit Box Width - 0.07
Unit Brutto Volume - 0.00364 cubm
Unit Gross Weight - 0.3 kg
Unit Net Weight - 0.2 kg
Vendor Homepage - www.supermicro.com/products/accessories/addon/AOC-S3008L-L8i.cfm
Warranty - 12 months
Weight - 0.293
