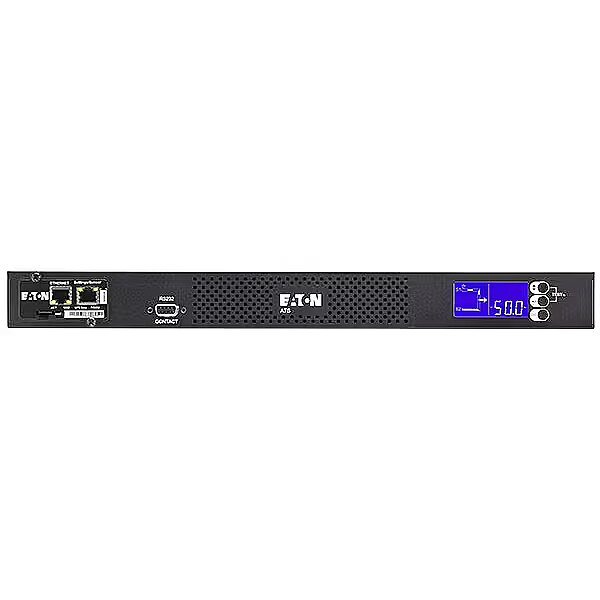

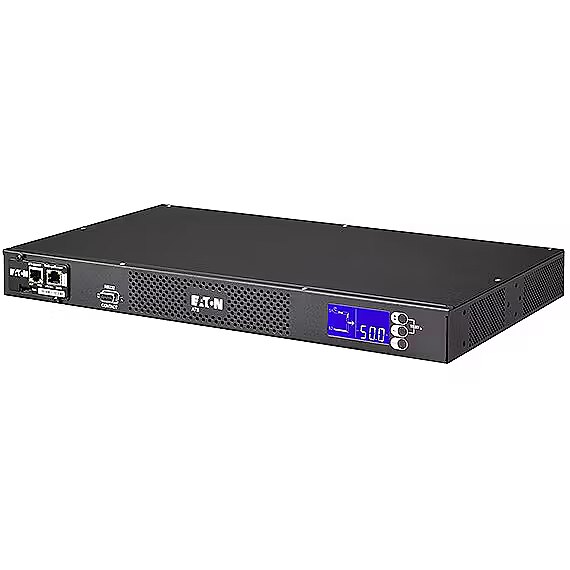

Eaton EATS16N ATS 16 power supply switch with network adapter

Stck_Pal - 10
No. of batteries - 0
ARTIKEL1 - EATON ATS 16A NETPACK
ARTIKEL2 - .
EANCode - 0743172079411
Special functions - - LCD user interface
- Network communication
Number of phases input - 1 (230V)
guarantee - 24
guarantee_type - external
GRUPPE1 - Power Protection
GRUPPE2 - Power Equipment Accs
Hold-up time (maks) - 8 ms
HSTNUMMER - EATS16N
Weight - 3.5 kg
ean - 743172079411
Environment requirements - - Operating temperature: 0 - 40 degrees Celsius
- Storage temperature: -25 to 55 degrees C
- ambient humidity: 20 - 85%
- Storage environment humidity: 0 - 90%
- Height: up to 2000 m n.p.m.
Description - EATON ATS 16N
Eaton ATS offers an inexpensive solution for customers wishing to add redundant power to network devices such as switches and routers. The automatic power switch will provide power from 2 different sources. If one power source fails, the backup source will be connected uninterrupted to the connected equipment. Eaton ATS can be connected to multiple devices while saving on the cost of using expensive redundant power supplies.
Main features:
- Provides redundancy for IT equipment
- An alternative to expensive redundant input power supplies
- Compact 1U rack housing
- Unbreakable switching from one power source to another
- LCD display - reading measurements and basic configuration settings
vendpn - EATS16N
Accessories included - Netpack version (NMC Card)
Other features -
Designation - CE+WEEE
dimension height - 130 mm
dimension width - 390 mm
dimension depth - 570 mm
Dimensions - 43 x 430 x 250 mm
dimension weight - 5000 g
name - EATS16N ATS 16 power supply switch with network adapter
Input power ports - IEC-C20
Stck_Kart - 1
Software -
producer - Eaton
HERSTELLER - EATON
Storno - Y
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Color - Black
Connectors - RJ-45
Connectors - RS-232 (COM)
Chassis type - Rack
