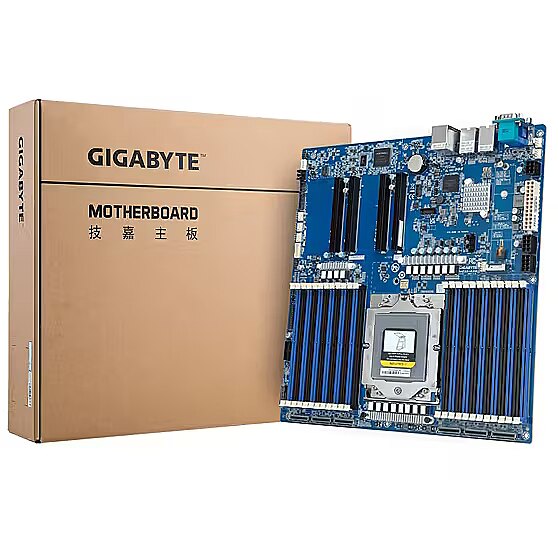

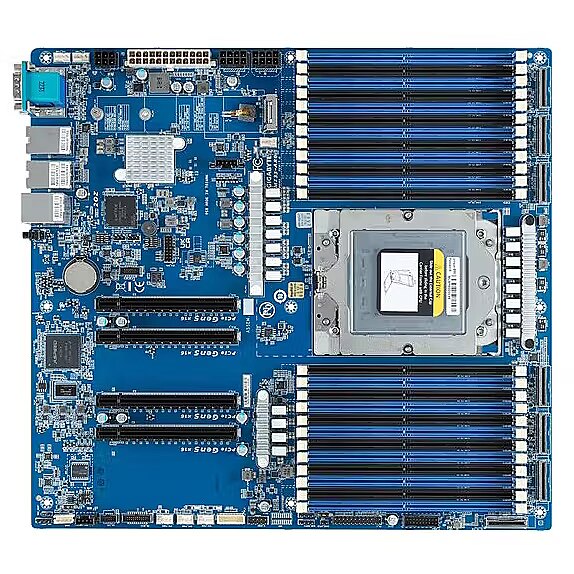

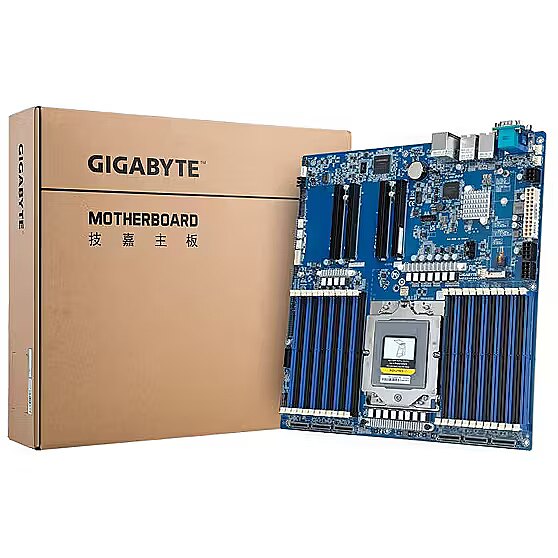

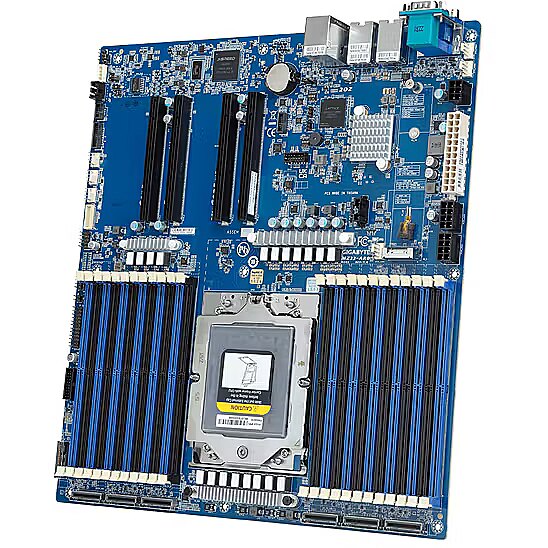

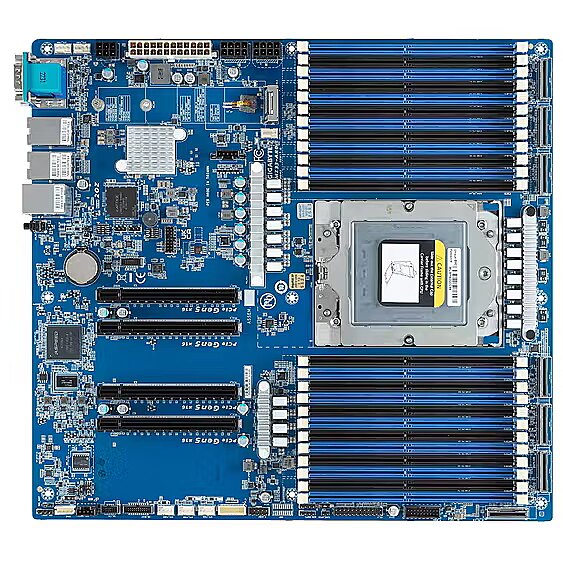

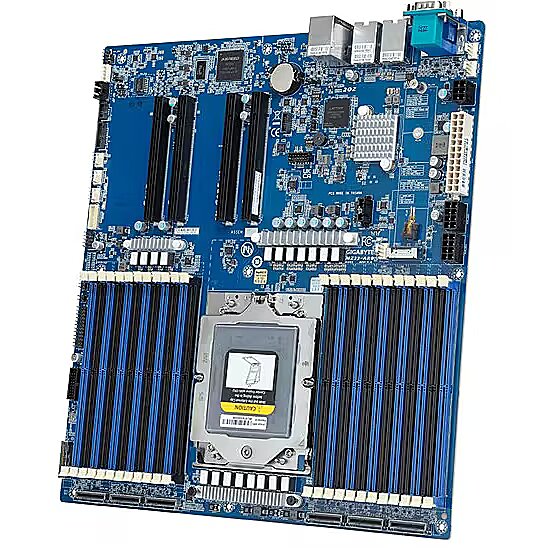

Gigabyte MZ33-AR0 motherboard Socket SP5 Extended ATX

Brand - GIGABYTE
BrandPartCode - MZ33-AR0
Category - Motherboards
dimensionalWeight - 2291
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 4
Features - Component for - Server
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - Power source type - ATX
Features - Product colour - Blue
Graphics - On-board graphics card model - Aspeed AST2600
GTIN - 0889523038888
GTIN - 889523038888
GTIN - 4719331849894
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of EPS power connectors (8-pin) - 2
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LongDesc - Powering the Next Generation of Server Architecture and Energy EfficiencyThe path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.Optional TPM 2.0 ModuleFor hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.GIGABYTE Management ConsoleFor management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interfaceAutomatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actionsIntegrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.GIGABYTE Server Management (GSM)GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.GSM CLI: A command-line interface for monitoring and managing remotely.GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
LongProductName - Motherboard - AMD EPYC™ 9004 - E-ATX UP
LongSummaryDescription - GIGABYTE MZ33-AR0. Processor manufacturer: AMD, Processor socket: Socket SP5, Compatible processor series: AMD EPYC 9004. Supported memory types: DDR5-SDRAM, Memory slots type: DIMM, Supported memory clock speeds: 3600,4000,4400,4800 MHz. Supported storage drive interfaces: M.2. On-board graphics card model: Aspeed AST2600. Ethernet interface type: Gigabit Ethernet, LAN controller: Broadcom BCM57416
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 24
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3600,4000,4400,4800 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Broadcom BCM57416
Network - Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 8 - 80%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 95%
Operational conditions - Storage temperature (T-T) - 10 - 40 °C
Packaging content - Cables included - SATA
Packaging data - Package depth - 355 mm
Packaging data - Package height - 78 mm
Packaging data - Package width - 409 mm
Processor - Compatible processor series - AMD EPYC 9004
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket SP5
producerCode - 9MZ33AR0MR-000
productName - GIGABYTE MZ33-AR0 motherboard Socket SP5 Extended ATX
ProductName - MZ33-AR0
productSize - Normal

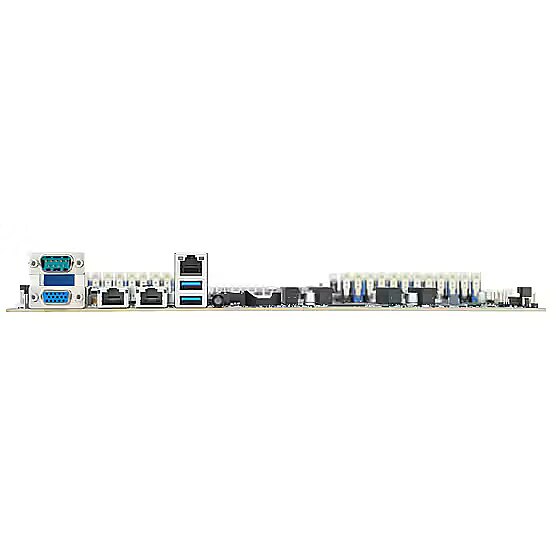

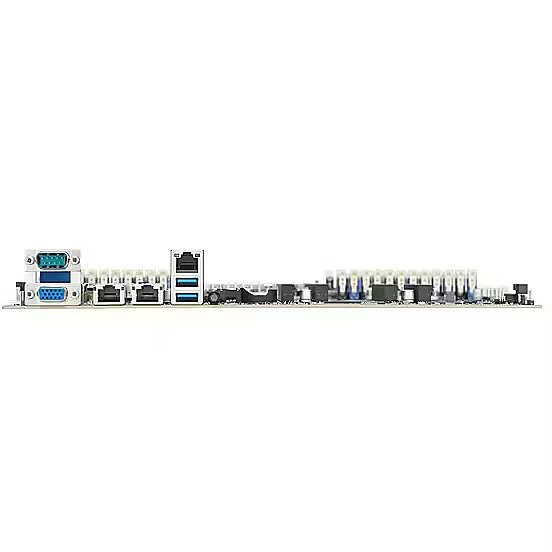

Rear panel I/O ports - COM ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
ShortSummaryDescription - GIGABYTE MZ33-AR0, AMD, Socket SP5, AMD EPYC 9004, DDR5-SDRAM, DIMM, 3600,4000,4400,4800 MHz
sizeX - 360
sizeY - 408
sizeZ - 78
Storage controllers - Number of storage drives supported - 8
Storage controllers - Supported storage drive interfaces - M.2
Title - GIGABYTE MZ33-AR0 motherboard Socket SP5 Extended ATX
URL - https://www.gigabyte.com/ua/Enterprise/Server-Motherboard/MZ33-AR0-rev-1x-3x
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1940
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Width - 305 mm
