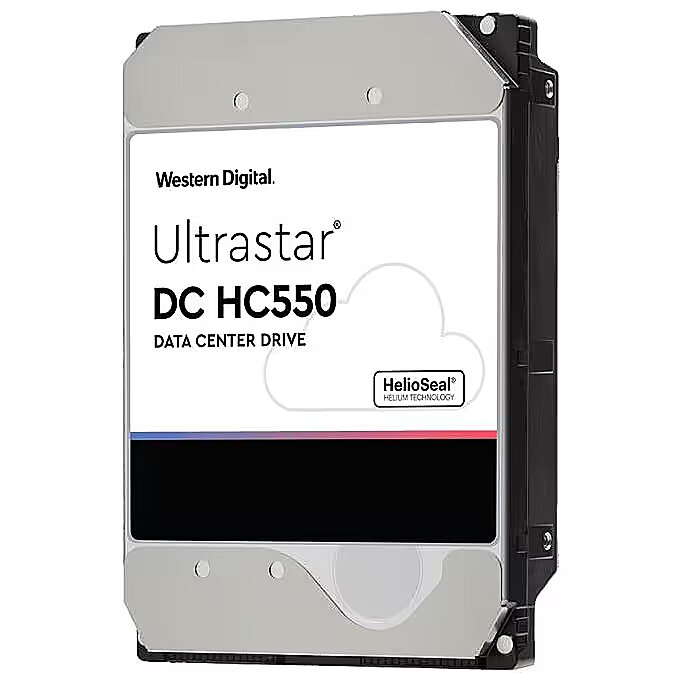

Western Digital WD HD3.5" SAS3 18TB WUH721818AL5204/512e (Di)

Average Seek - 4.16 ms
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HDC
Description - Western Digital Ultrastar DC HC550 - 18TB The breadth and depth of Big Data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard disk drives (HDDs). The DC HC500 series is designed for public and private cloud environments where storage density and cost-efficient infrastructure is critical. Total Cost of Ownership (TCO) Drives the Data Center Architecture Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. An 18TB data center internal hard drive provides 29% more capacity in the same form factor as a 14TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs can require 22% fewer racks while consuming 21% less power per TB at idle, resulting in significant overall TCO reduction for data center environments. Raising the Capacity Bar with New Technologies Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 18TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption. ? The first internal hard drives in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density. ? The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density. ? HelioSeal® technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of HelioSeal product. Western Digital has shipped >65 million HelioSeal products to date.
dimensionalWeight - 60
EAN - 8717306633321
Features - Average latency - 4.16 ms
Features - Component for - Server/workstation
Features - HDD average transfer rate - 600 MB/s
Features - HDD capacity - 18 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 267 MiB/s
Features - Interface - SAS
Features - Mean time between failures (MTBF) - 2500000 h
Features - Read seek time - 7.5 ms
Features - Start/stop cycles - 600000
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Form Factor - 3,5"
Full Description Line - Ultrastar DC HC550|WUH721818AL5204|18TB|SAS|7200 rpm|Average Seek 4.16 ms|3,5"|MTBF 2500000 hours
Gross Weight Kg - 0,33
HDD Capacity - 18TB
HDD Family name - Ultrastar DC HC550
Manufacturer - Western Digital
Manufacturer Code - 0F38353
Manufacturer Name - Western Digital
Model name - WUH721818AL5204
MPN - 0F38353
MTBF - 2.5e+006 hours
Name - 18TB WD Ultrastar DC HC550 0F38353 7200RPM 512MB Ent.
Operational conditions - Non-operating shock - 300 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 70 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Storage drive adapter included - No
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.5 W
Power - Power consumption (typical) - 6 W
producerCode - 0F38353
productName - Western Digital Ultrastar 0F38353 3.5" 18000 GB SAS
Product Net Weight - 0.69 kg
productSize - Normal
Rotation speed - 7200 rpm
SAS Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping Box Weight Shipping/Package Box Dimensions - 14.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
Short description - WD HD3.5" SAS3 18TB WUH721818AL5204/512e (Di)
sizeX - 150
sizeY - 100
sizeZ - 20
Unit Box Height - 0.15
Unit Box Length - 0.02
Unit Box Width - 0.1
Unit Calculated Volume - 0.00165 cubm
Unit Calculated Weight - 0.72 kg
Units per Shipping Box - 20
Vendor Homepage - www.westerndigital.com/products/data-center-platforms/ultrastar-dc-hc500-series-hdd
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0.68
weight - 700
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 690 g
Weight & dimensions - Width - 101.6 mm
