Brand - ASUS
BrandPartCode - 90MC09P0-M0EAY0
Category - Interface Cards/Adapters
Category 1 - Mainboards & Zubehör
Category 2 - Mainboard Zubehör
Category Code - SCO
Category_1 - Computers and Laptops
Category_2 - Computers - Accessories
Design - Internal - Yes
Design - Product colour - Black
Design - Purpose - PC
EAN - 4711081115243
EAN_code - 4711081115243
Features - Chipset - Intel Thunderbolt 4 JHL8540
Features - Data transfer rate (max) - 40 Gbit/s
Features - Plug and Play - Yes
Gross Weight Kg - 0,5
GTIN - 0195553115254
GTIN - 195553115254
GTIN - 4711081115243
Logistics data - Harmonized System (HS) code - 84733020

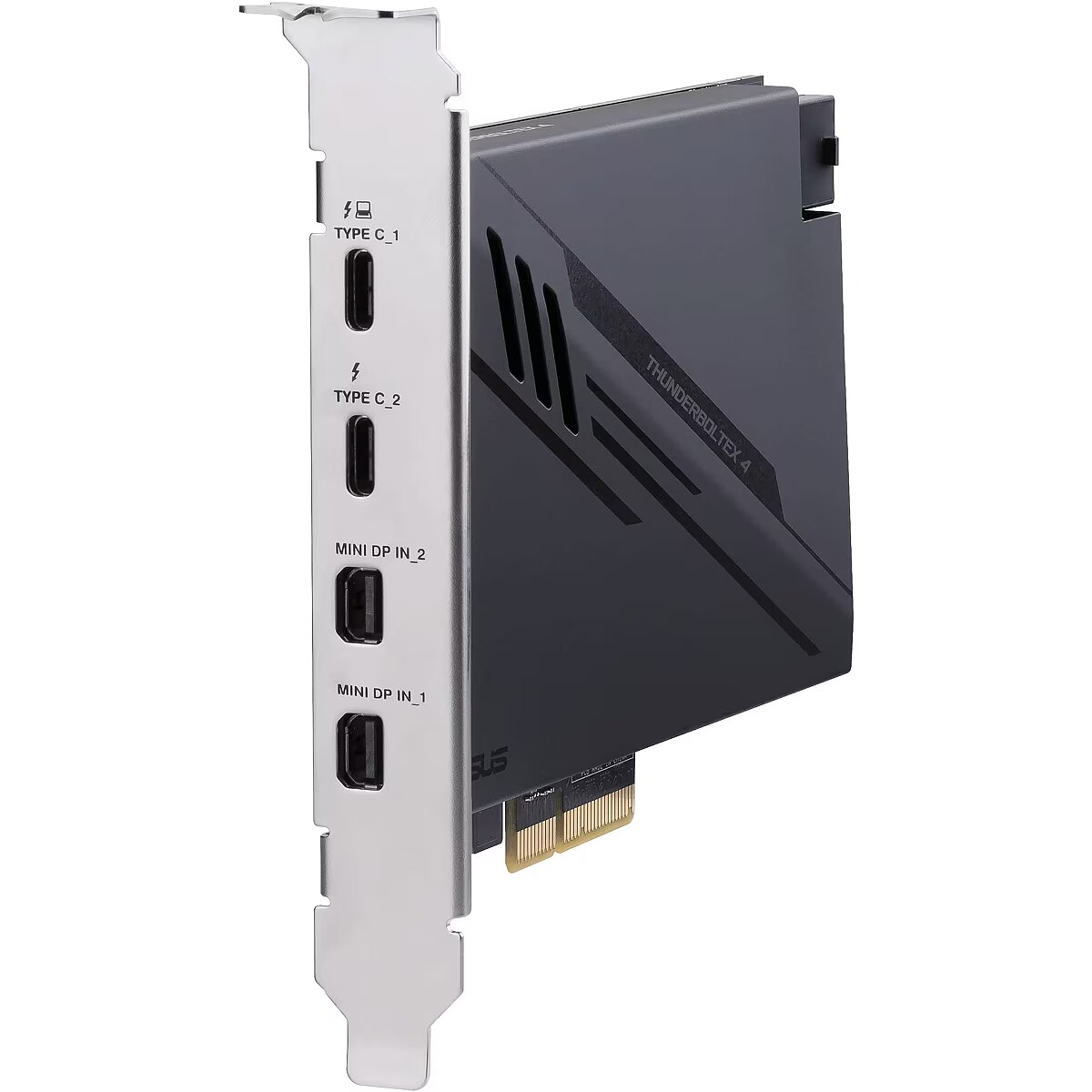

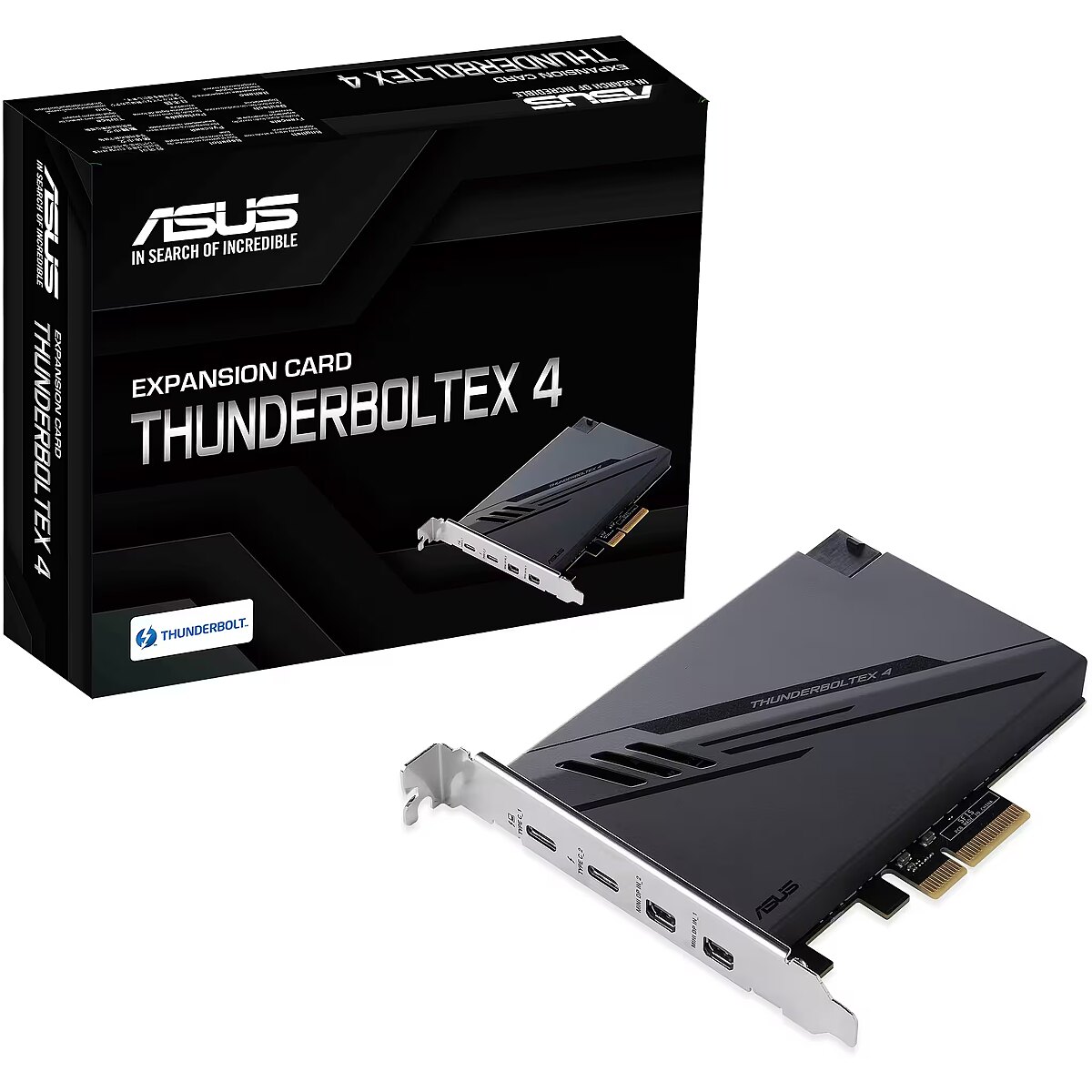

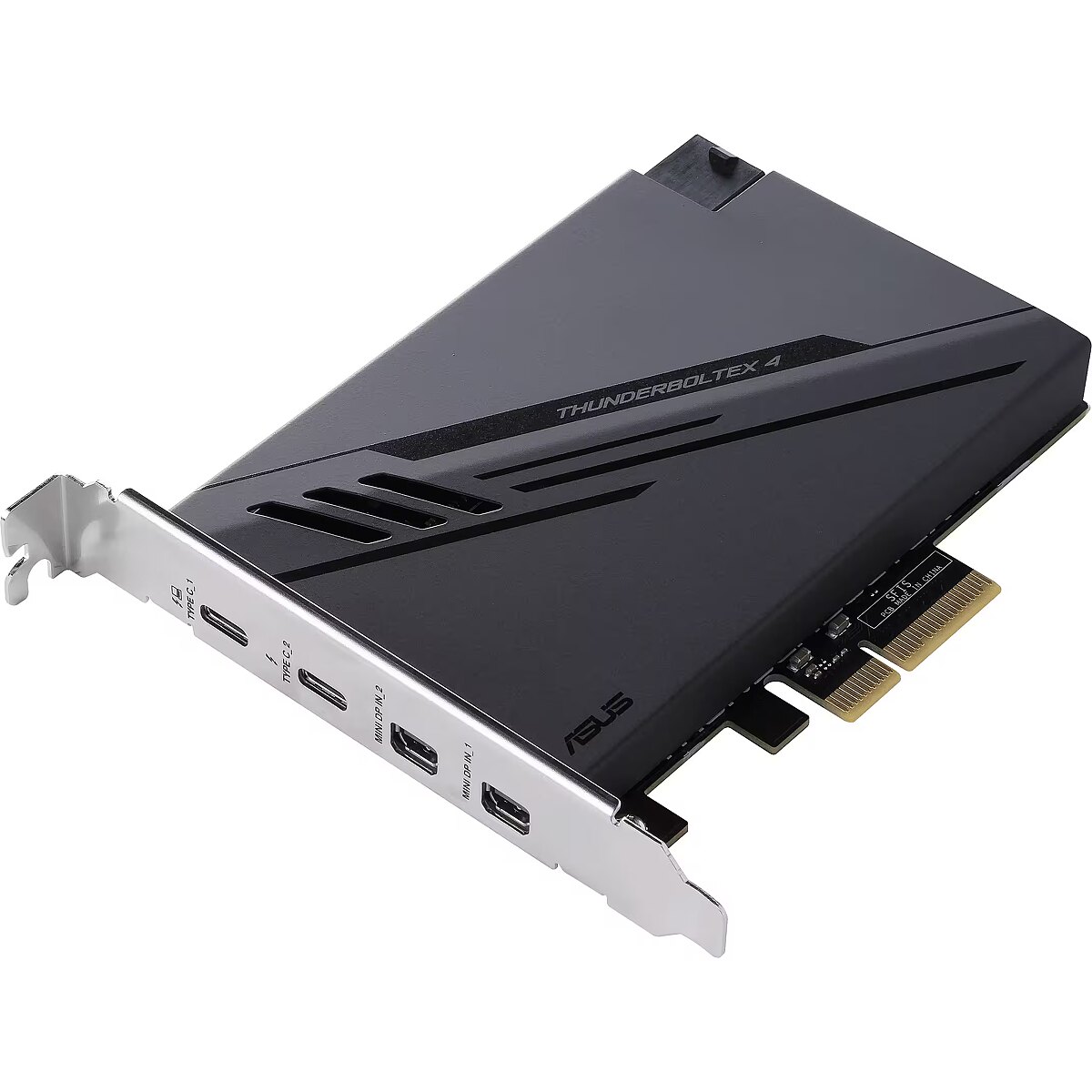

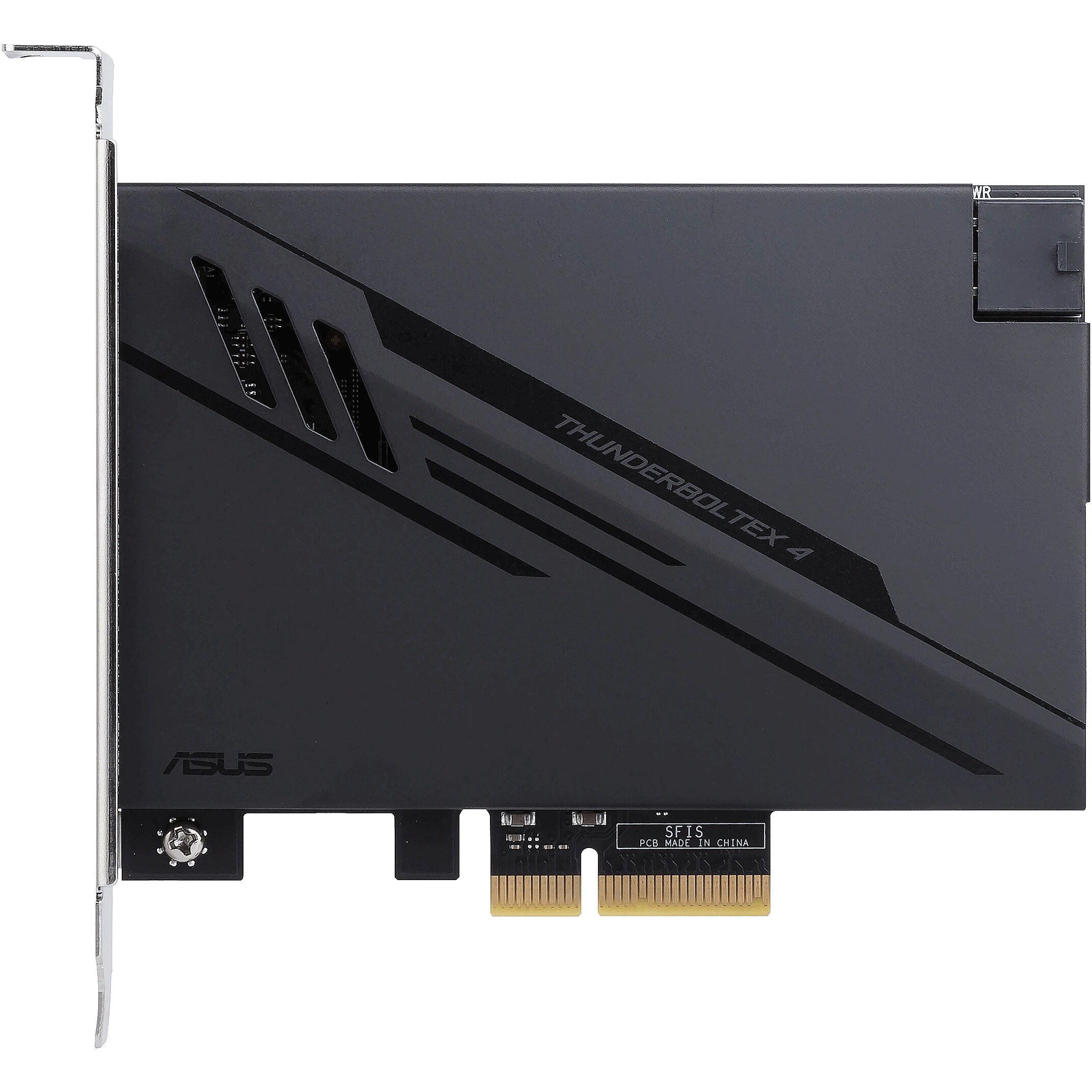

LongDesc - Enable blisteringly fast speeds and any-way-up connectivityASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.
LongProductName - Intel Thunderbolt 4 JHL8540, 2 x USB Type-C (Thunderbolt 4), 2 x mini DisplayPort, 1 x 6-pin PCIe, 1 x USB 2.0 header, 1 x Thunderbolt header, PCIe 3.0 x4
LongSummaryDescription - ASUS ThunderboltEX 4. Host interface: PCIe, Output interface: Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Black, Purpose: PC. Chipset: Intel Thunderbolt 4 JHL8540, Data transfer rate (max): 40 Gbit/s. Windows operating systems supported: Windows 10 x64. Width: 117.7 mm, Depth: 180.5 mm
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MC09P0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MC09P0-M0EAY0
MPN - 90MC09P0-M0EAY0
Name - Asus THUNDERBOLTEX 4
Name - ASUS ThunderboltEX 4

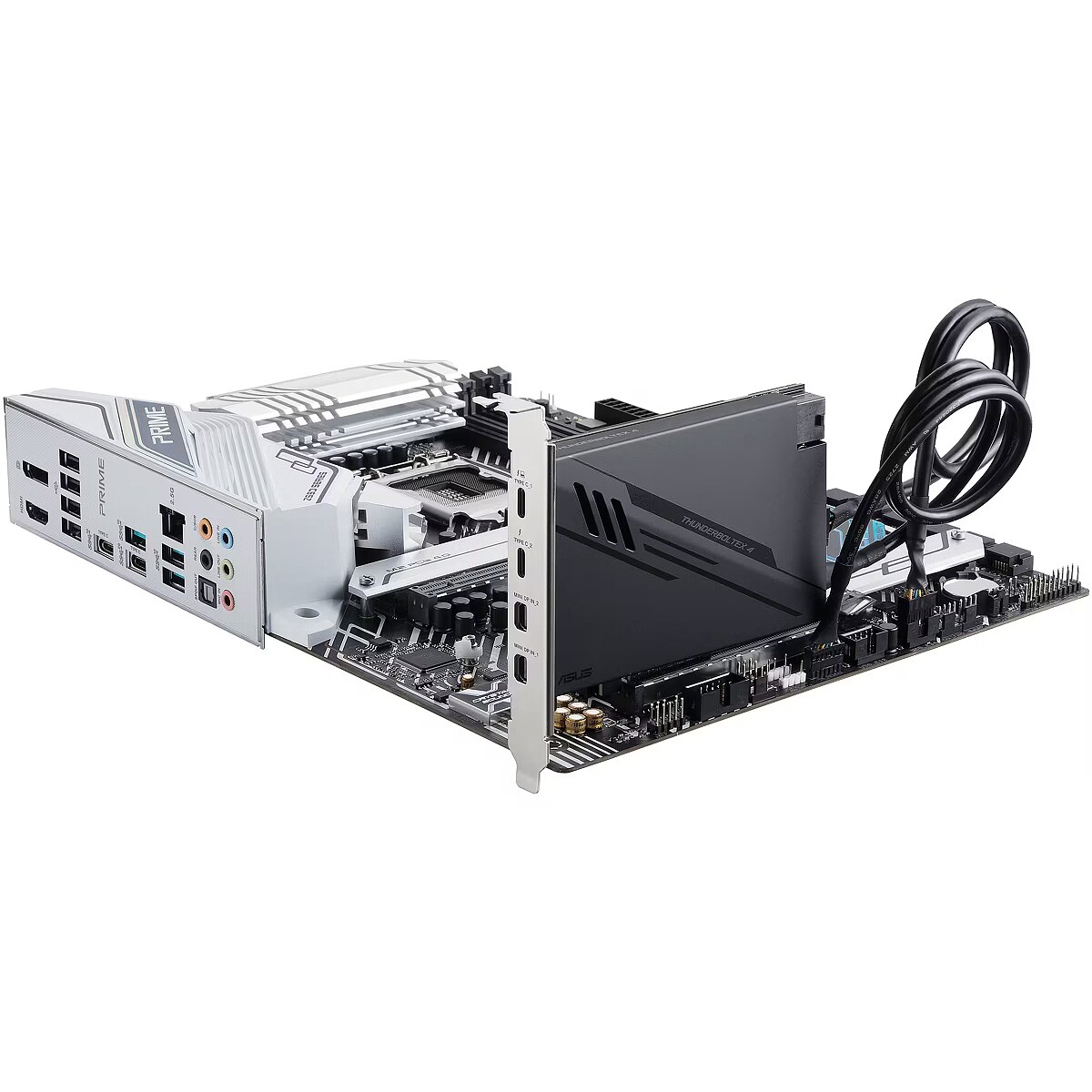

Other features - Compatibility - ASUS Intel 500
Other features - Maximum resolution - 7680 x 4320 pixels

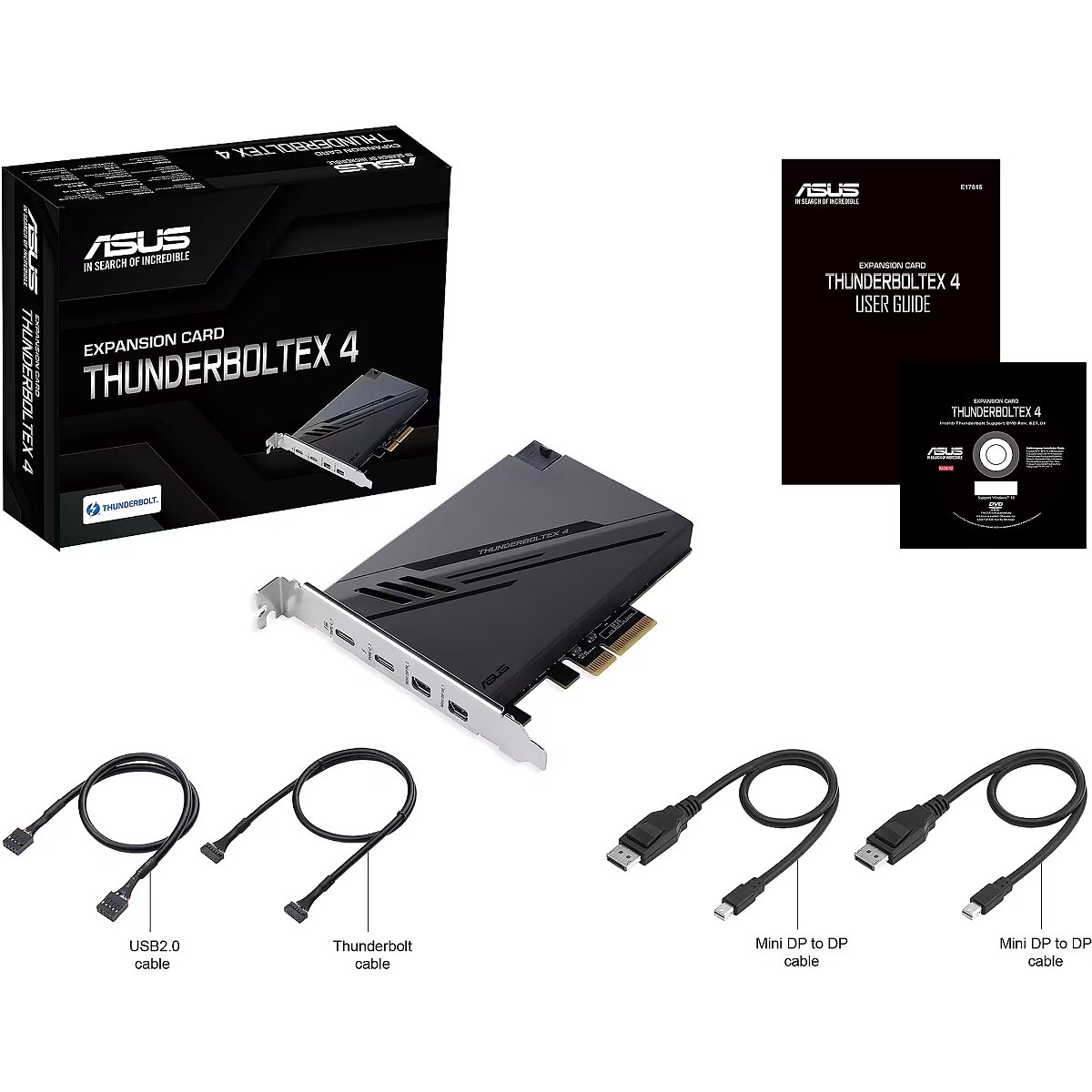

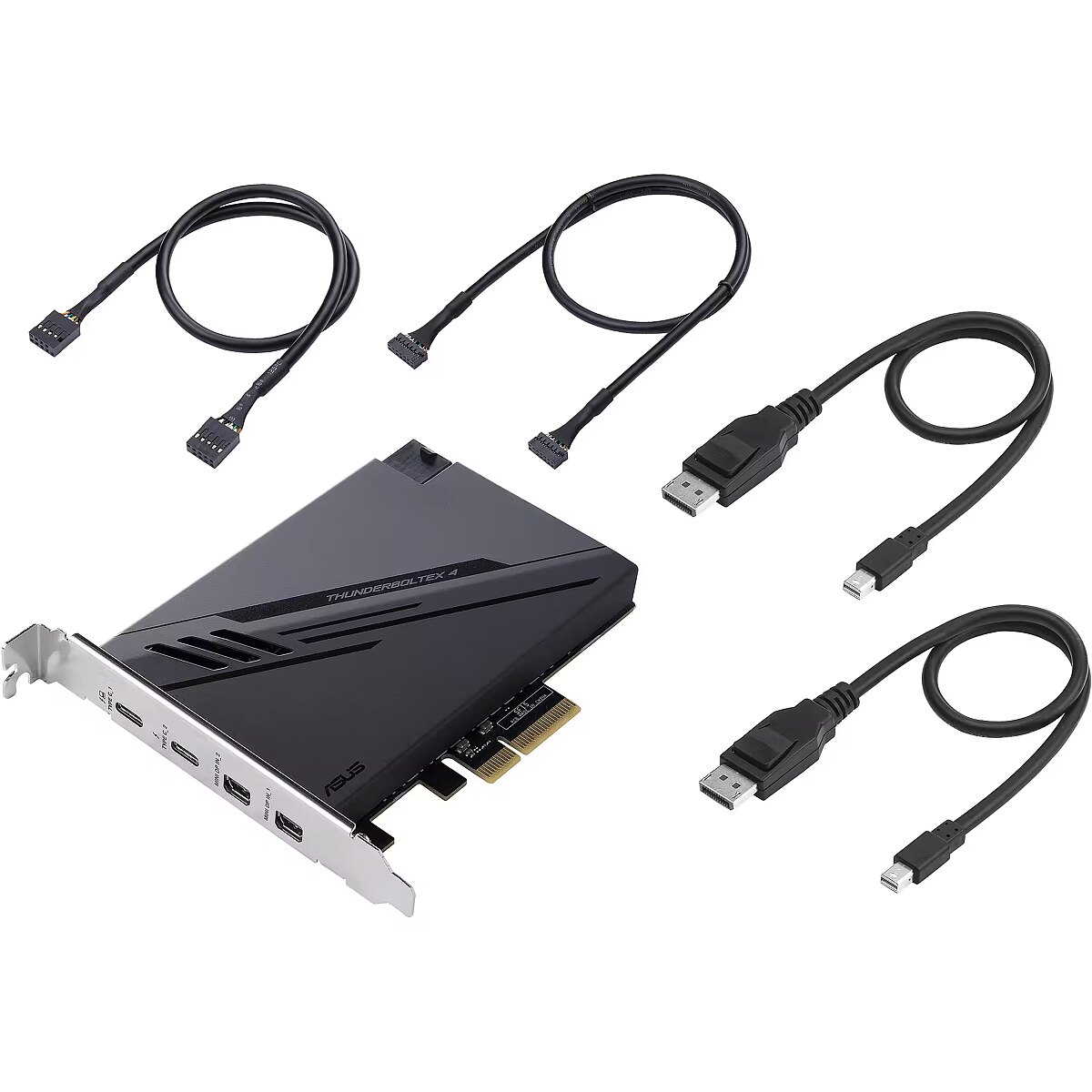

Packaging data - Cables included - Mini DisplayPort, Thunderbolt, USB
Packaging data - Drivers included - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Packaging data - Quantity - 1
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
ProductName - ThunderboltEX 4
Short description - ASUS Thunderbolt EX4 PCIe 3.0 x4
ShortSummaryDescription - ASUS ThunderboltEX 4, PCIe, Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2), PCIe 3.0, Black, PC, Intel Thunderbolt 4 JHL8540
System requirements - Windows operating systems supported - Windows 10 x64
Title - ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
Unit Box Height - 0.06
Unit Box Length - 0.225
Unit Box Width - 0.185
Unit Calculated Volume - 0.003208 cubm
Unit Calculated Weight - 0.645 kg
Units per Pallet - 0
Units per Shipping Box - 10
URL - https://www.asus.com/Motherboards-Components/Motherboards/Accessories/ThunderboltEX-4/
Warranty - 36 months
WarrantyInfo -
Weight - 0,55
Weight - 0.55
Weight & dimensions - Depth - 180.5 mm
Weight & dimensions - Width - 117.7 mm
